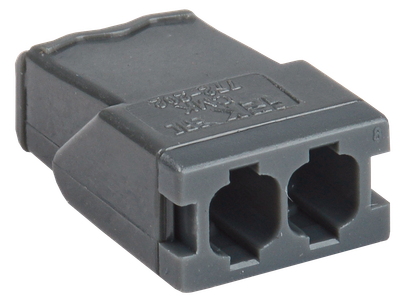

Construction and assembly terminal SMK 772-242 compact with paste (4pcs/pack) IEK
Product ID:
Main specifications
| Number of clamp positions | 2 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | - |
| Connectable conductor cross section solid-core, мм² | 0,5...2,5 |
Description
Compact LED luminaire for accent lighting of architectural and landscape elements, as well as interior decor
Advantages
- High-quality oxygen-free copper conductor used in patch cord provides high connection speed and stable data transmission to create a reliable household or working local area network.
- The outer shell is made of environmentally friendly PVC corresponding to the European production standard.
Specifications
| Number of clamp positions | 2 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | - |
| Connectable conductor cross section solid-core, мм² | 0,5...2,5 |
| Colour | Белый |
| Nominal current, А | 24 |
| Nominal voltage, В | 450 |
| Type of electrical connection | Фиксатор/защелка |
| Mechanical Execution Group | М3 |
| With operation lever | Нет |
| Maintainability | Нет |
| Ambient class | УХЛ3 |
| Nominal Attachment Capacity, мм² | 2,5 |
| Suitable for flexible core | Да |
| Operation temperature, °C | -25...60 |
| Type of electrical connection 2 | Фиксатор/защелка |
| Nominal DC operating voltage Ue, В | 220 |
| Conductor cross section flexible (fine-strand) with cable end sleeve, мм² | - |
| Nominal operating AC voltage Ue, В | 450 |
| Transparent | Нет |
| Suitable for multi-wire core | Да |
| Suitable for solid core | Да |
| Height, мм | 6.8 |
| Width, мм | 16.5 |
| Degree of protection (IP) | IP20 |
| Relative air humidity | ≤ 90% |
| Length, мм | 10.6 |
| Connectable conductor cross section multi-wired, мм² | - |
| Rated insulation voltage Ui, В | 660 |
