Ammeter E47 80/5A accuracy class 1.5 72x72mm IEK
Артикул:
Основные характеристики
| Model | На переднюю панель |
| Measuring range, А | 0...80 |
| Voltage type | Переменный (AC) |

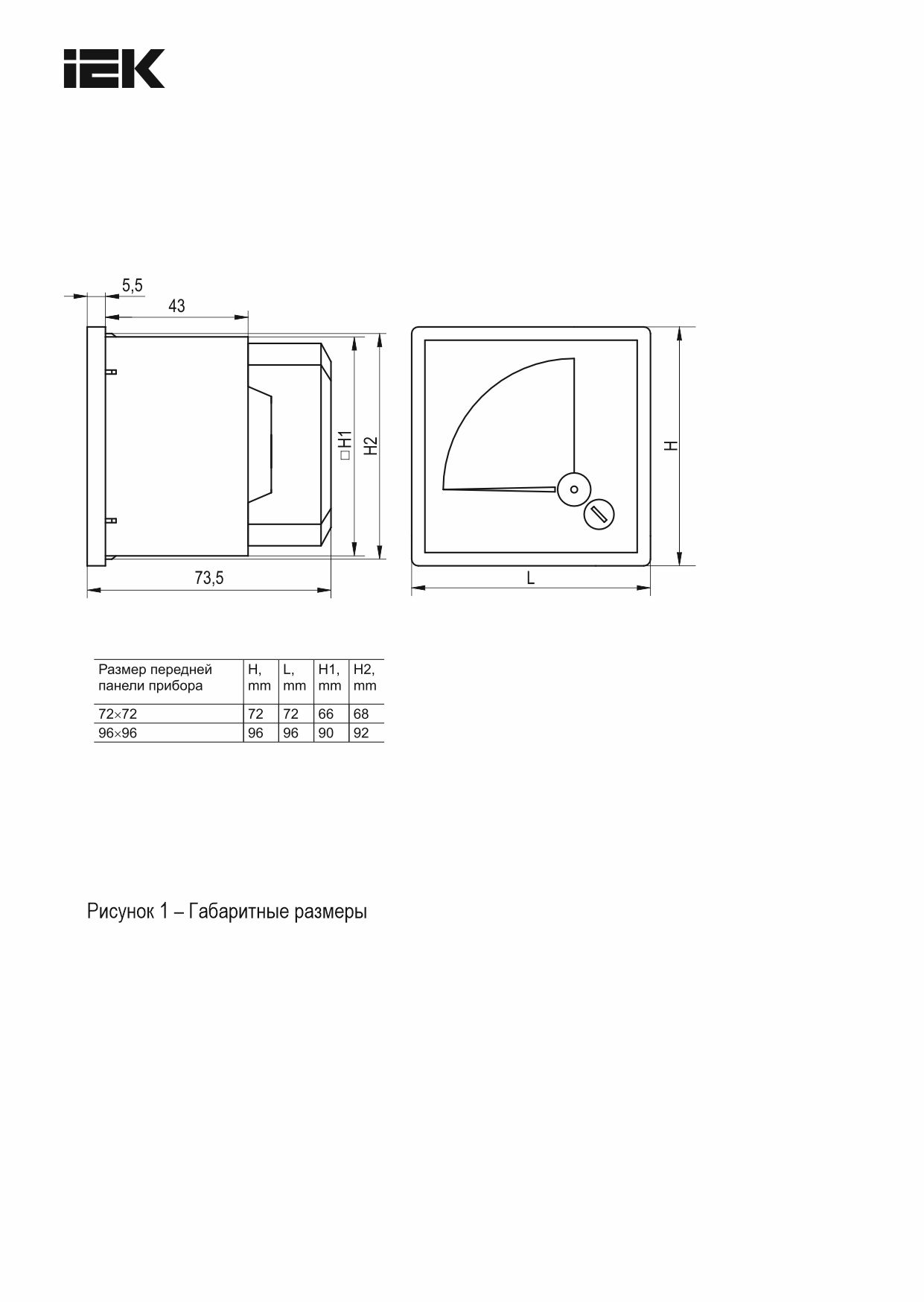

| Width, мм | 72 |
| Height, мм | 72 |
Описание
Switches are designed for conducting current in normal mode and disconnecting current during short circuits, overloads and unacceptable voltage drops, as well as for infrequent (up to 6 times a day) operational switching on and off of electrical circuits and are designed for operation in electrical installations with a rated voltage of up to 440 V DC and up to 660 V AC with a frequency of 50 and 60 Hz. Included in the register of the Ministry of Industry and Trade.
Особенности конструкции
Технические характеристики
| Model | На переднюю панель |
| Measuring range, А | 0...80 |
| Voltage type | Переменный (AC) |
| Width, мм | 72 |
| Height, мм | 72 |
| Nominal rated voltage, В | 403 |
| Accuracy class | 1.5 |
| Ambient temperature, °C | 5...35 |
| Nominal end value of the scale, А | 80 |

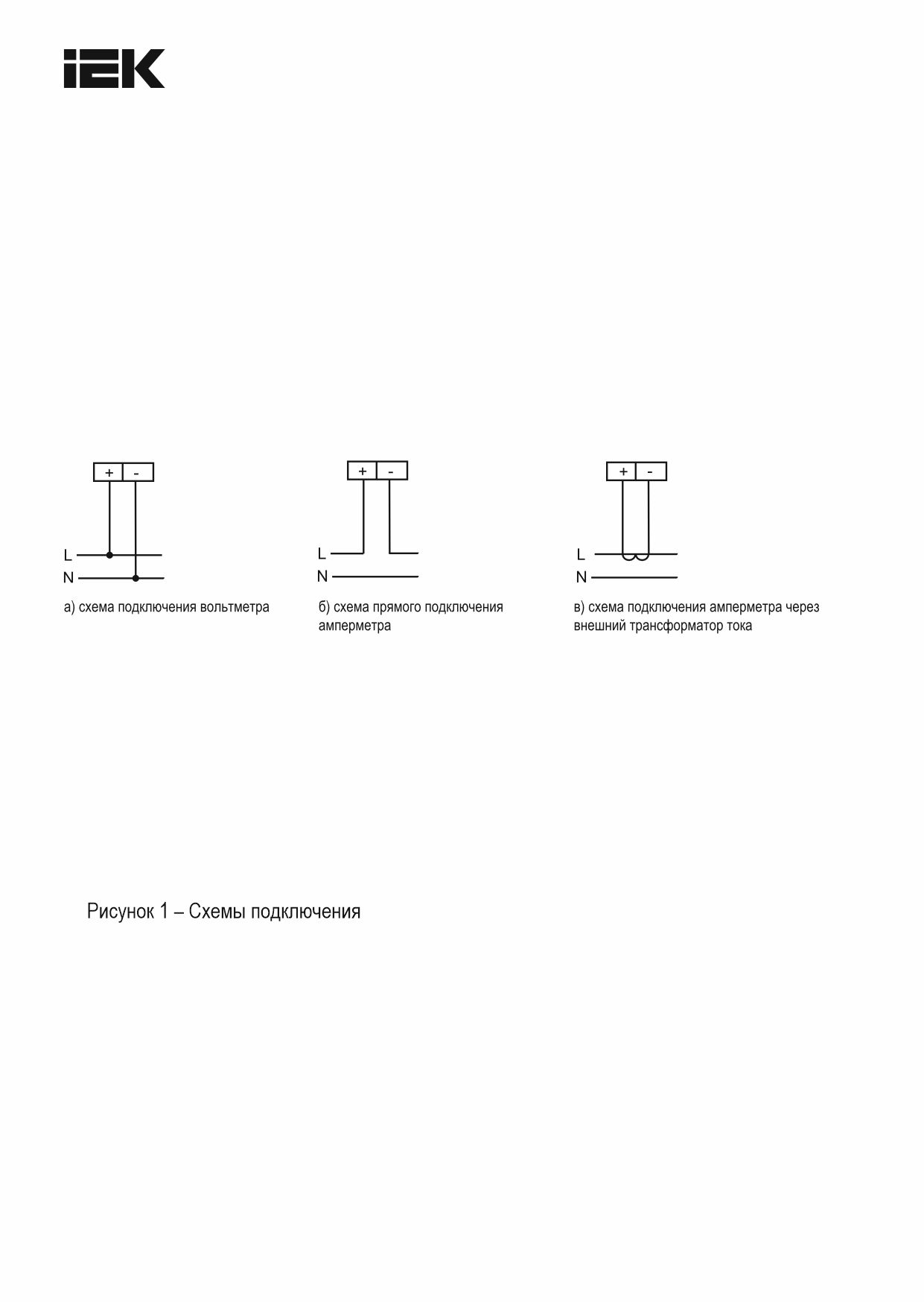

| Transformer connection | Да |
| Degree of Protection - IP Side of Contacts | IP20 |
| Modular version | Да |
| Scales lighting | Нет |
| Measurement system | Прочее |
| Calibrated | Да |
| Stay-set indicator | Нет |
| Power loss, Вт | - |
| Max. needle deflection, ° | 90 |
| Systems | Электромагнитная (-ый) |
| Degree of Protection - External IP | IP54 |
| Over current scale | Нет |
