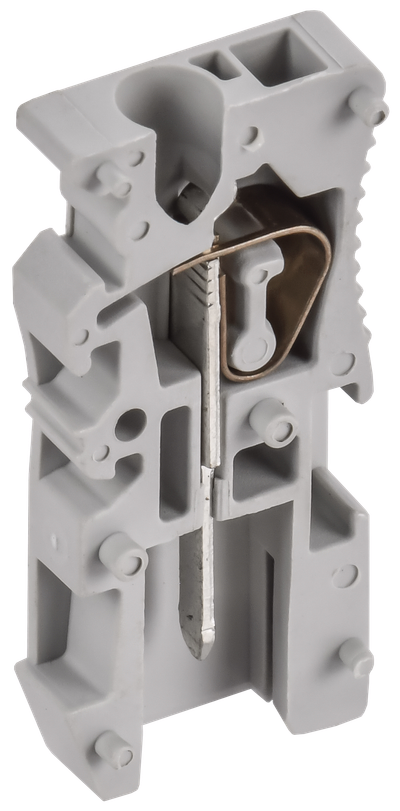

ARMAFIX Terminal block CX2.5-SN spring 2.5mm2 connector for cable (1 clamp 1 connector) gray IEK
New
Product ID:
Main specifications
| Number of poles | 1 |
| Width/grid dimension, мм | 5 |
| Rated current In, А | 24 |
| Connectable conductor cross section solid-core, мм² | 0,2...4 |
| Connectable conductor cross section, мм² | 0,2...2,5 |
Specifications
| Number of poles | 1 |
| Width/grid dimension, мм | 5 |
| Rated current In, А | 24 |
| Connectable conductor cross section solid-core, мм² | 0,2...4 |
| Connectable conductor cross section, мм² | 0,2...2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...2,5 |
| Model | Гнездо |
| Type of electric connection | Соединение с пружинным зажимом |
| Connectable conductor cross section fine-strand with cable end sleeve, мм² | 0,2...2,5 |
| Total number of poles (without ground contact) | 1 |
| Nominal rated voltage, В | 500 |
| Tackable | Да |
| Connectable conductor cross section multi-wired, мм² | 0,2...2,5 |
