ESCA 3 Turn vertical inner 90deg 50x150-1,2 HDZ IEK

Паспорта и РЭ

Срок службы, Лет

Esca 5 rotation vertical internal 90x 50x150-1.2 HDZ IEK

a new line of the L-Fusion series for covering retail spaces, as well as logistics objects. The MG mounting system allows you to combine the lamps among themselves in continuous trunk sections up to 40 m, as well as create decorative geometric compositions, thanks to the corner elements.

ESCA 7 Turn vertical inner 90deg 50x150-2.0 HDZ IEK

TV-rosette type "star" Valena. It is used to connect one receiver TV to the antenna, as well as to organize a television network according to the Zvezda scheme, when each TV is laid from a signal source.

ESCA 7 Turn vertical inner 90deg 50x150-1.5 HDZ IEK

Cable tray width, мм	150
Height, мм	50
Colour	Светло-серый
Cable tray height, мм	50
Material quality	Прочее
Mounting temperature, °C	-50...40
Zinc coating thickness, мкм	55
Change of direction	Вертикально восходящий (внутренний)
Mounting perforation in bottom	Нет
Metal thickness, мм	1.5
Material	Сталь
Side wall perforation	Нет
Degree of protection (IP)	IP00
Width branch, мм	150
Wide span model	Нет
RAL-number	7047
Weight, кг	0,83
Length, мм	249
Ambient class	У1, ХЛ1, УХЛ1, УХЛ5, ОМ1
Corrosion Resistance Class	6
Surface protection	Покрытие методом горячего погружения
Deflection (angle)	90
Ambient temperature, °C	-50...40
Width, мм	150
Model	Интегрированный разъем
Suitable for circuit integrity	Нет
Stainless steel, pickled	Нет

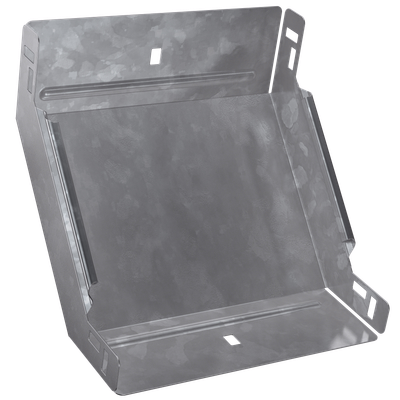

ESCA 7 Turn vertical inner 90deg 50x150-1.5 HDZ IEK
