45° bend 50x200

Программа расчета кабельных трасс "Лотки 3.1"

PRK motor-starters of IEK trade mark are designed for managing and protecting three-phase asynchronous electric motors from overloads, short-circuit and open-phase operating conditions. They combine the functions of a modular circuit breaker serving for motor protection and a manual starter.
These starters are used at industrial sites, agriculture and construction. It is possible to apply them for the local management of separate electric motors as well as residential and administrative building automation.

45° bend 50x200 IEK HDZ

Inner radius

Поворот плавный 90 градусов и 45 градусов серии ESCA. Краткое руководство по эксплуатации

Cable tray width, мм	200
Height, мм	50
Model	Интегрированный разъем
Mounting perforation in bottom	Нет
Ambient temperature, °C	-50...40

Cable tray width, мм	200
Height, мм	50
Model	Интегрированный разъем
Mounting perforation in bottom	Нет
Ambient temperature, °C	-50...40
Change of direction	Горизонтальный (-ая)
Colour	Светло-серый
Deflection (angle)	45
Suitable for circuit integrity	Нет
Width, мм	200
RAL-number	7047
Side wall perforation	Нет
Material quality	Прочее
Length, мм	377
Width branch, мм	200
Material	Сталь
Wide span model	Нет
Zinc coating thickness, мкм	10
Stainless steel, pickled	Нет
Degree of protection (IP)	IP00
Surface protection	Оцинковка по методу Сендзимира
Cable tray height, мм	50
Ambient class	У2, ХЛ2, УХЛ2, ОМ2
Mounting temperature, °C	-50...40
Metal thickness, мм	0.8
Weight, кг	0,59
Corrosion Resistance Class	2

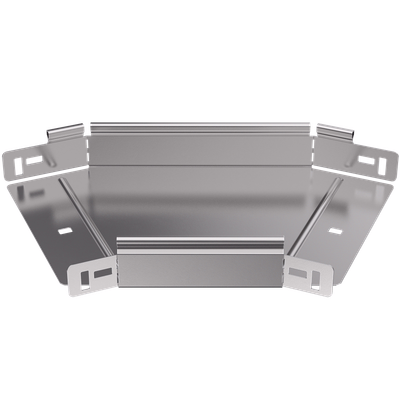

ESCA 5 turn 45-grade 50x200-0.8 IEK
