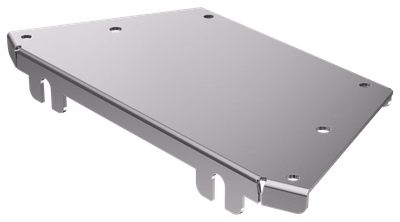

ESCA 7 Swivel cover 45deg 100-2.0 IEK
Новинка
Артикул:
Основные характеристики
| Width, мм | 100.0 |
| Length, мм | 224.0 |
| Material | Сталь |
| Height, мм | 24.0 |
| Suitable for cable duct | Нет |
Описание
It is used to organize the rotation of the cable route by 90 ° in a horizontal plane with a rotation radius of 900 mm. It is made of rolled cold -rolled steel, followed by a protective zinc coating by immersion in the melt according to GOST 9.307. The cover is supplied separately.
Технические характеристики
| Width, мм | 100.0 |
| Length, мм | 224.0 |
| Material | Сталь |
| Height, мм | 24.0 |
| Suitable for cable duct | Нет |
| Surface protection | Оцинковка по методу Сендзимира |
| Metal thickness, мм | 2 |
| RAL-number | 7047 |
| Corrosion Resistance Class | 2 |
| Weight, кг | 0,38 |
| Ambient temperature, °C | -50...40 |
| Suitable for circuit integrity | Нет |
| Climatic design in accordance with GOST 15150 | У2, ХЛ2, УХЛ2, ОМ2 |
| Degree of protection (IP) | IP00 |
| Type of fastening | Фиксатор крышки |
| Suitable for wire mesh tray | Нет |
| Zinc coating thickness, мкм | 10 |
| Mounting temperature, °C | -50...40 |
| Material quality | Прочее |
| Suitable for cable ladder | Нет |
| Colour | Светло-серый |
| Deflection (angle) | 45 |
| Hinging | Нет |
| Stainless steel, pickled | Нет |
