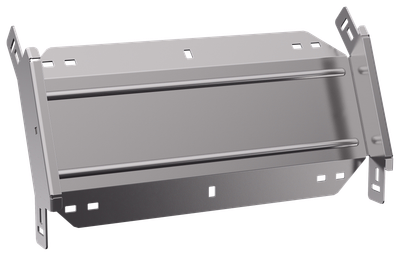

ESCA 7 Turn vertical outer 45deg 50x300-2.0 IEK
Новинка
Артикул:
Основные характеристики
| Cable tray width, мм | 300 |
| Height, мм | 50 |
| Suitable for circuit integrity | Нет |
| Surface protection | Оцинковка по методу Сендзимира |
| Degree of protection (IP) | IP00 |
Описание
It is used to organize a T-shaped branch of the cable route with a rotation radius of 900 mm. It is made of rolled cold -rolled steel, followed by a protective zinc coating by immersion in the melt according to GOST 9.307. The cover is supplied separately.
Технические характеристики
| Cable tray width, мм | 300 |
| Height, мм | 50 |
| Suitable for circuit integrity | Нет |
| Surface protection | Оцинковка по методу Сендзимира |
| Degree of protection (IP) | IP00 |
| RAL-number | 7047 |
| Stainless steel, pickled | Нет |
| Ambient temperature, °C | -50...40 |
| Mounting perforation in bottom | Нет |
| Length, мм | 234 |
| Cable tray height, мм | 50 |
| Model | Интегрированный разъем |
| Material quality | Прочее |
| Mounting temperature, °C | -50...40 |
| Material | Сталь |
| Ambient class | У2, ХЛ2, УХЛ2, ОМ2 |
| Side wall perforation | Нет |
| Colour | Светло-серый |
| Weight, кг | 1,26 |
| Metal thickness, мм | 2.0 |
| Zinc coating thickness, мкм | 10 |
| Deflection (angle) | 45 |
| Change of direction | Вертикально ниспадающий (внешний) |
| Corrosion Resistance Class | 2 |
| Wide span model | Нет |
| Width branch, мм | 300 |
| Width, мм | 300 |
