The absence of sharp edges of the baffles prevents damage to the hands of the installer and the cable insulation.

Together with the tray, a partition can be used, which serves to divide the tray into two or more departments in the case of mounting different types of wiring (information and power) in one tray to prevent interference. The dividing wall is compatible with all types of IEK trays.

All trays and accessories are interconnected using a unified set of connecting KS M6x10. Thus, to assemble a track of any degree of complexity, only three types of hardware are needed. Thanks to the square headrest, which fixes the bolt from the M6x10 connecting KS kit, only one M10 key is needed to connect the trays and accessories.

Separation plate for cable support system

Partition height

Surface protection

Length

Metal thickness

Suitable for circuit integrity

Suitable for wire mesh tray

RAL-number

Colour

Stainless steel, pickled

Weight

Suitable for cable duct

Base-plate width

Material quality

Suitable for cable ladder

Model

Mounting perforation

Type of fastening

Material

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

Partition plate h=50mm L3000 HDZ IEK

The absence of sharp edges of the dividing partitions eliminates damage to the installer’s hands and cable insulation.

The 30mm perforation pitch allows the partition to be secured anywhere along the length of the tray, providing maximum flexibility in design and installation. The dividing partition is attached to the tray using a unified connecting kit KS M6x10

Together with the tray, a partition can be used, which serves to divide the tray into two or more sections in the case of installing different types of wiring (information and power) in one tray to eliminate interference. The divider is compatible with all types of IEK trays.

Паспорта и РЭ

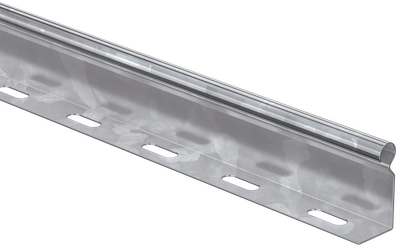

Separation Partners 50x2000 0.7mm HDZ IEK

Separation Partners 50x3000 0.7mm HDZ IEK

Partition height, мм	40
Surface protection	Покрытие методом горячего погружения
Length, мм	3000
Metal thickness, мм	0,7
Material quality	Сталь черная

Partition height, мм	40
Surface protection	Покрытие методом горячего погружения
Length, мм	3000
Metal thickness, мм	0,7
Material quality	Сталь черная
Suitable for circuit integrity	Нет
Colour	Серый
Weight, кг	1,31
Suitable for wire mesh tray	Да
Suitable for cable ladder	Да
Material	Сталь
Model	L-профиль
Mounting perforation	Да
Base-plate width, мм	21
Suitable for cable duct	Нет
Stainless steel, pickled	Нет
Type of fastening	Винтовое

Separation Partners 50x3000 0.7mm HDZ IEK
