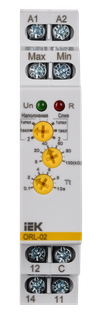

Level relay. Ability to select the mode to control one level or two on one device, with sensitivity adjustment. With the possibility of setting a time delay. Fill/drain function selection. 24-240VAC/DC

Design Features

Specifications

Physical measurement principleПрочее
Number of inputs for electrodes3
Voltage type for actuatingПеремен./постоян. (AC/DC)
Rated control supply voltage Us at AC 50HZ, В24
Rated control supply voltage Us at DC, В240
Number of contacts as change-over contact1
Response value sensitivity adjustableДа
MaterialПластик
CascadableНет
Max. permitted off-delay time, с10
Depth, мм64
Type of electric connectionВинтовое соединение
Number of contacts as normally open contact1
Height, мм90
Max. permitted operate delay time, с1.5
Min. adjustable off-delay time, с0
Width, мм18
Number of contacts as normally closed contact1
Min. adjustable operate delay time, с1.5
