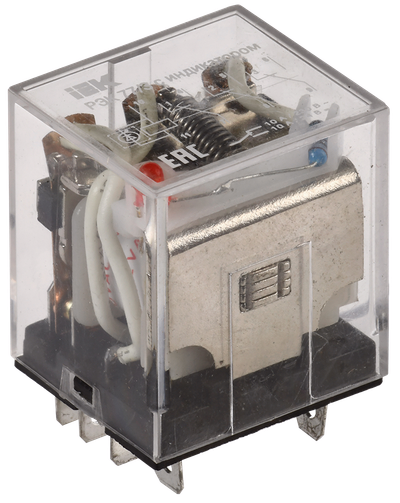

Relay REK77/3(LY3) with indication 10A 12V DC IEK
Product ID:
Main specifications
| Voltage type for actuating | Постоянный (DC) |
| Rated control supply voltage Us at DC, В | 12 |
| Rated control supply voltage Us at AC 50HZ, В | - |
| Number of contacts as change-over contact | 3 |
| Nominal current, А | 10 |
Description
Cable ducts of "ECOLINE" series are intended for laying digital, open-type low voltage and low-current supply lines in offices and residential premises, industrial and administrative buildings, medical and children institutions at a new construction or modernization. "ECOLINE" series cable ducts meet the requirements EN 50085-1, EN 50085-2-1.
Advantages
- Convenient mounting and exploitation.
- Low power losses at the expense of using contemporary materials.
- Double visible circuit breaking, color indication of "on" position provide for boosting the safety of electric installations servicing by technical personnel.
- Possibility to connect copper and aluminum current conducting wires as well as cooper and aluminum buses.
Design Features
Specifications
| Voltage type for actuating | Постоянный (DC) |
| Rated control supply voltage Us at DC, В | 12 |
| Rated control supply voltage Us at AC 50HZ, В | - |
| Number of contacts as change-over contact | 3 |
| Nominal current, А | 10 |
| Type of switch contact | Прочее |
| Number of groups of switching contacts | 3 |
| With signal lamp | Да |
| Connector Joint Type | IEK_V0000173 |
| Type of electric connection | Плоское разъёмное соединение |
| Electric wear resistance, циклов | ≥ 10^5 |
| With forced-guided contacts | Нет |
| Height, мм | 42 |
| Current consumed by coil at AC 230 V, мА | 15.0 |
| Ambient temperature, °C | -45...40 |
| Ambient class | IEK_V0000172 |
| With detachable clamps | Нет |
| Current consumed by coil at DC 12 V, мА | 130.0 |
| Depth, мм | 27 |
| Drive, polarization | Определенная полюсность |
| Current consumed by coil at AC 12 V, мА | 170.0 |
| Current consumed by coil at DC 24 V, мА | 80.0 |
| Number of contacts as normally closed contact | 3 |
| Drive, switching attitude | Моностабильное |
| Degree of protection (IP) | IP40 |
| Number of contacts as normally open contact | 3 |
| Control coil power at DC 12 V, Вт | 1.6 |
| Current consumed by coil at AC 24 V, мА | 190.0 |
| Nominal operating voltage AC contacts, В | 230 |
| Control coil power at AC 12 V, ВА | 2.0 |
| Control coil power at AC 230 V, ВА | 3.5 |
| Mechanical wear resistance, циклов | ≥ 10^7 |
| Width, мм | 31.0 |
| Insulation resistance, мОм | ≥ 100 |
| Complete with socket | Нет |
| Control coil power at AC 24 V, ВА | 4.6 |
| Nominal operating voltage DC contacts, В | 24 |
| Control coil power at DC 24 V, Вт | 1.9 |
