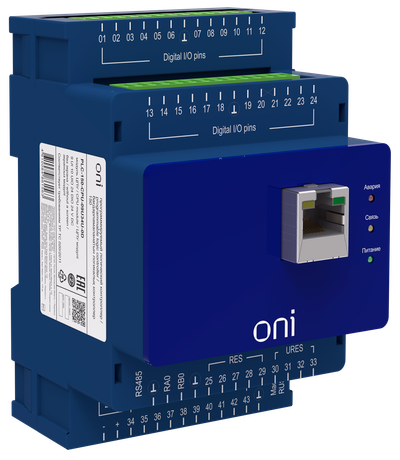

PLC 150 CPU module 9 UI 10 UIO 24 DIO 24V DC without ONI shield
New
Product ID:
Main specifications
| Voltage type of supply voltage | Постоянный (DC) |
| Supply voltage DC, В | 10…35 |
| Supply voltage AC 50 Hz, В | - |
| Number of analogue outputs | 10 |
| Number of analogue inputs | 19 |
Design Features
Specifications
| Voltage type of supply voltage | Постоянный (DC) |
| Supply voltage DC, В | 10…35 |
| Supply voltage AC 50 Hz, В | - |
| Number of analogue outputs | 10 |
| Number of analogue inputs | 19 |
| Number of digital inputs | 43 |
| Number of digital outputs | 24 |
| With display | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for PROFIBUS | Нет |
| Radiostandard Bluetooth | Нет |
| Radiostandard WLAN 802.11 | Да |
| Radiostandard GSM | Нет |
| Memory size, кБайт | 390 |
| Height, мм | 72 |
| Appendant operation agent (Ex ia) | Нет |
| Width, мм | 106 |
| Supporting protocol for EtherNet/IP | Да |
| Wall mounting/direct mounting | Нет |
| Max. number of time switches | 0 |
| Depth, мм | 60 |
| Number of relay outputs | 0 |
| Suitable for safety functions | Нет |
| System accessory | Нет |
| With optical interface | Нет |
