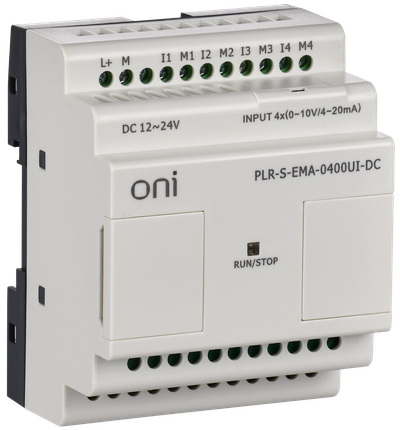

Logic relay PLR-S ONI. Expansion module with 4 channels of analog input (0-10V/0..20mA). Supply voltage 12-24 V DC
Product ID:
Main specifications
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
Description
Logic relay PLR-S ONI. Expansion module with 4 channels of analog input (0-10V/0..20mA). Supply voltage 12-24 V DC.
Life time:
7 years
Warranty:
1 years
Advantages
- Expansion module with 4 analog input channels (0-10V/0..20mA).
- DIN rail mounting.
- economical model.
Specifications
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Degree of protection (IP) | IP20 |
| Width, mm | 72 |
| Rail mounting possible | Yes |
| Height, mm | 90 |
| Depth, mm | 58 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Wall mounting/direct mounting | Yes |
| Supply voltage AC 50 Hz, B | - |
| Supply voltage DC, B | 12...24 |
| Power consumption, W | 1.0 |
| With display | No |
| With relay output | No |
Documents
Passports
Logistics parameters
| Individual | Transport | |
|---|---|---|
| Quantity | 1 | 89 |
| Units | pc; 1 | pc; 1 |
| Type of packaging | BOX/BOX | BOX/BOX |
| Packaging material | THREE-LAYER CORRUGATED | FIVE-LAYER CORPORATED |
| Barcode | 4610084412383 | 4610084412390 |
| Gross weight, kg | 0.183 | 16.3 |
| Netto weight, kg | 0.182 | 16.198 |
| Volume, m^3 | 0.000864 | 0.076896 |
| Length, cm | 8.3 | 61 |
| Height, cm | 7.7 | 28 |
| Width, cm | 10 | 45 |
| Method of applying information | Mold | Mold |
