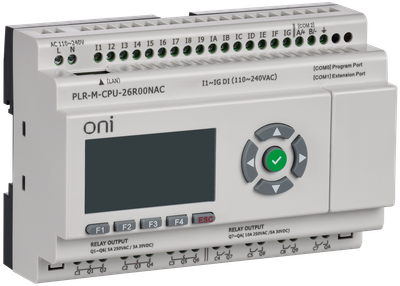

ONI Micro PLC. Expandable version. With built-in screen. 16 digital inputs (230V AC), 10 relay outputs. RS485. ethernet. Supply voltage 110-230V AC

ONI Micro PLC. Expandable version. With built-in screen. 16 digital inputs (230V AC), 10 relay outputs. RS485. ethernet. Supply voltage 110-230V AC
Product ID:

Main specifications

Voltage type of supply voltageПеременный (AC)
Supply voltage DC, В-
Supply voltage AC 50 Hz, В110…240
Number of analogue outputs0
Number of analogue inputs0

Description

The horizontal rotation of 90 ° is designed to organize the rotation of the cable highway in the horizontal plane. The accessory of the accessory with the tray is carried out at the expense of the telescopic connector. Suitable for all types of leaf trays of the ESCA series. The cover for the accessory is ordered separately. The accessory is made of steel galvanized by Senziri (a protective layer of zinc at least 5-10 microns).

Specifications

Voltage type of supply voltageПеременный (AC)
Supply voltage DC, В-
Supply voltage AC 50 Hz, В110…240
Number of analogue outputs0
Number of analogue inputs0
Number of digital inputs16
Number of digital outputs10
With displayДа
Number of HW-interfaces RS-4851
Number of HW-interfaces industrial Ethernet1
Supporting protocol for TCP/IPДа
Supporting protocol for MODBUSДа
Supporting protocol for PROFIBUSНет
Radiostandard BluetoothНет
Radiostandard WLAN 802.11Нет
Radiostandard GSMНет
Width, мм134
Appendant operation agent (Ex ia)Нет
With optical interfaceНет
Supporting protocol for EtherNet/IPДа
Suitable for safety functionsНет
Wall mounting/direct mountingДа
Memory size, кБайт8192
Max. number of time switches0
Rail mounting possibleДа
Depth, мм58
Height, мм90
System accessoryНет
Number of relay outputs10
