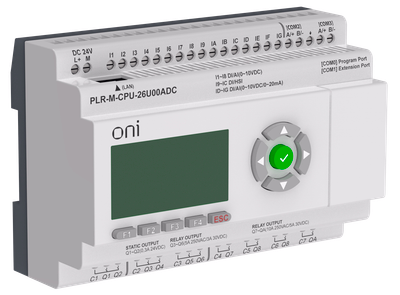

Micro PLC ONI. Expandable version. With built-in screen. 16 discrete inputs (4 as 0-20mA, 8 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. 2xRS485. ethernet. Supply voltage 24V DC

Product ID:
Main specifications
Voltage type of supply voltage | Постоянный (DC) |
Supply voltage DC, В | 20,4...28,8 |
Supply voltage AC 50 Hz, В | - |
Number of analogue outputs | 0 |
Number of analogue inputs | 12 |
Description
Explosion-proof luminaires "Ex-FHB" refer to electrical equipment intended for use in hazardous areas of class 2 (according to GOST IEC 60079-10-1-2011) categories IIC and temperature classes T4, as well as equipment of electrical group III intended for use in zones hazardous for the ignition of combustible dust 21 and 22 (according to GOST IEC 60079-10-2-2001) in accordance with the requirements of GOST IEC 60079-14-2013 and assigned explosion protection markings in accordance with GOST 31610.0-2014.
Advantages
- Velcro clamps with a soft fastener are easy to mount and dismantle.
- Thanks to the design, the clamps can be used repeatedly.
- Made from high strength nylon.
- Eliminate the possibility of damage to copper and optical communication lines.

Design Features
Specifications
Voltage type of supply voltage | Постоянный (DC) |
Supply voltage DC, В | 20,4...28,8 |
Supply voltage AC 50 Hz, В | - |
Number of analogue outputs | 0 |
Number of analogue inputs | 12 |
Number of digital inputs | 16 |
Number of digital outputs | 8 |
With display | Да |
Number of HW-interfaces RS-232 | 1 |
Number of HW-interfaces RS-485 | 2 |
Number of HW-interfaces industrial Ethernet | 1 |
Supporting protocol for TCP/IP | Да |
Supporting protocol for MODBUS | Да |
Supporting protocol for PROFIBUS | Нет |
Supporting protocol for CAN | Нет |
Supporting protocol for KNX | Нет |
Radiostandard Bluetooth | Нет |
Radiostandard WLAN 802.11 | Нет |
Radiostandard GPRS | Нет |
Radiostandard GSM | Нет |
Supporting protocol for INTERBUS | Нет |
Radiostandard UMTS | Нет |
Depth, мм | 58 |
Supporting protocol for ASI | Нет |
Supporting protocol for SafetyBUS p | Нет |
Supporting protocol for Foundation Fieldbus | Нет |
Supporting protocol for AS-Interface Safety at Work | Нет |
Max. number of addressable digital I/O-ports | 280 |
Appendant operation agent (Ex ia) | Нет |
Supporting protocol for DeviceNet | Нет |
Supporting protocol for PROFIsafe | Нет |
Memory size, кБайт | 8,192 |
Number of relay outputs | 8 |
System accessory | Нет |
IO link master | Нет |
Supporting protocol for PROFINET CBA | Нет |
Supporting protocol for SUCONET | Нет |
Supporting protocol for SERCOS | Нет |
With optical interface | Нет |
Appendant operation agent (Ex ib) | Нет |
Width, мм | 134 |
Supporting protocol for INTERBUS-Safety | Нет |
Max. number of time switches | 0 |
Max. number of addressable analogue I/O-ports | 104 |
Wall mounting/direct mounting | Да |
Rack-assembly possible | Нет |
Explosion safety category for dust | Нет |
Height, мм | 90 |
Supporting protocol for EtherNet/IP | Да |
Model | Модульный |
Explosion safety category for gas | Нет |
Supporting protocol for LON | Нет |
Front build in possible | Нет |
Supporting protocol for other bus systems | Да |
Supporting protocol for Data-Highway | Нет |
Additional program memory possible | Нет |
Suitable for safety functions | Нет |
Supporting protocol for PROFINET IO | Нет |
Redundancy | Нет |
Rail mounting possible | Да |
Supporting protocol for DeviceNet Safety | Нет |
