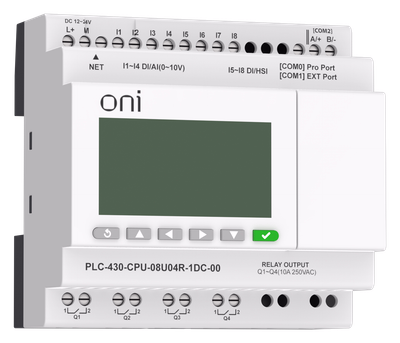

PLC 430 CPU module 4 DI 4 UI (0-10V/DI) 4 RO 24V DC with ONI screen
New
Product ID:
Main specifications
| Voltage type of supply voltage | Постоянный (DC) |
| Supply voltage DC, В | 20,4...28,8 |
| Supply voltage AC 50 Hz, В | - |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 4 |
Specifications
| Voltage type of supply voltage | Постоянный (DC) |
| Supply voltage DC, В | 20,4...28,8 |
| Supply voltage AC 50 Hz, В | - |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 4 |
| Number of digital inputs | 8 |
| Number of digital outputs | 4 |
| With display | Да |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for KNX | Нет |
| Radiostandard Bluetooth | Нет |
| Radiostandard WLAN 802.11 | Нет |
| Radiostandard GPRS | Нет |
| Radiostandard GSM | Нет |
| Model | Модульный |
| System accessory | Нет |
| Wall mounting/direct mounting | Да |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Explosion safety category for gas | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Depth, мм | 58 |
| Memory size, кБайт | 4096 |
| Radiostandard UMTS | Нет |
| Front build in possible | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Max. number of time switches | 0 |
| Suitable for safety functions | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Additional program memory possible | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Redundancy | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of relay outputs | 4 |
| Appendant operation agent (Ex ib) | Нет |
| With optical interface | Нет |
| Supporting protocol for SERCOS | Нет |
| Height, мм | 90 |
| Supporting protocol for LON | Нет |
| IO link master | Нет |
| Supporting protocol for SUCONET | Нет |
| Explosion safety category for dust | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for other bus systems | Да |
| Rail mounting possible | Да |
| Max. number of addressable analogue I/O-ports | 102 |
| Appendant operation agent (Ex ia) | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Width, мм | 95 |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Max. number of addressable digital I/O-ports | 280 |
| Rack-assembly possible | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for INTERBUS | Нет |
