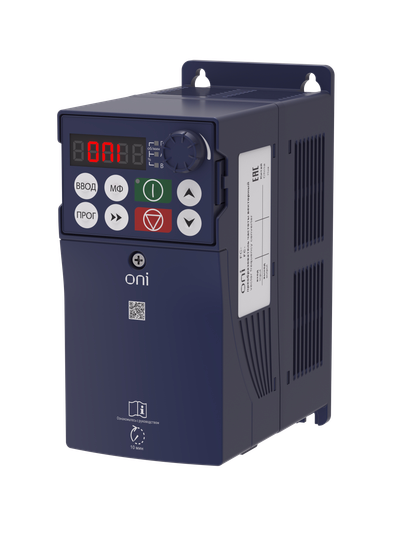

Frequency converter FC-230 1Ph 220V 0.4kW 2.5A built-in braking module ONI
New
Product ID:
Main specifications
| Output power at rated output voltage, кВт | 0.40 |
| Supporting protocol for MODBUS | Да |
| Number of phases | 1 |
| Max. output frequency, Гц | 300 |
| Degree of protection (IP) | IP20 |
Specifications
| Output power at rated output voltage, кВт | 0.40 |
| Supporting protocol for MODBUS | Да |
| Number of phases | 1 |
| Max. output frequency, Гц | 300 |
| Degree of protection (IP) | IP20 |
| Mains voltage, В | 220 |
| With PC connection | Нет |
| Type of converter | Непосредственный преобразователь |
| Number of phases input | 1 |
| Number of phases output | 3 |
| Mains frequency | 50/60 Гц |
| Max. output voltage, В | 240 |
| With control unit | Да |
| Rated output current I2N, А | 2,5 |
| Electric shock protection class | I |

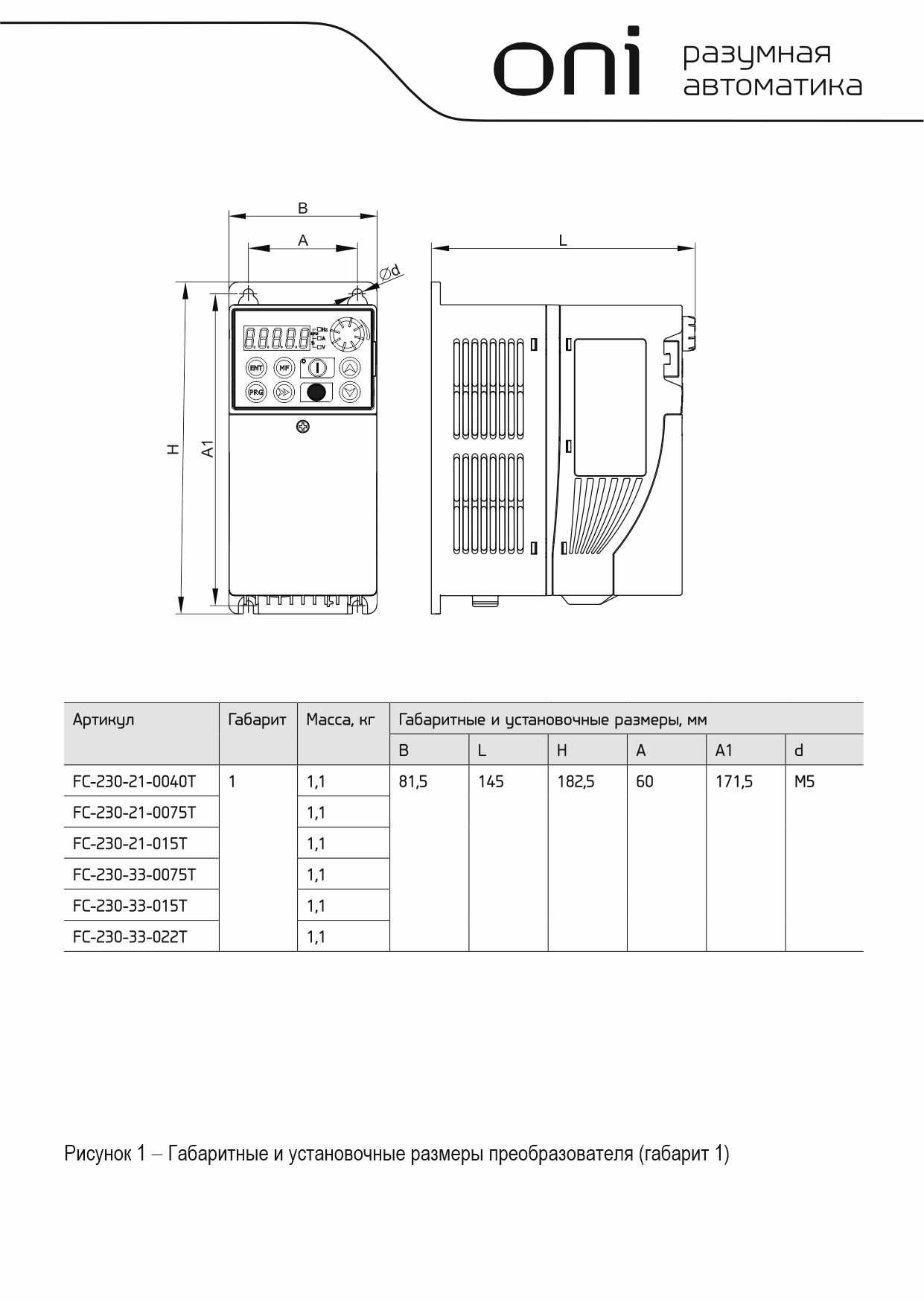

| Height, мм | 182,5 |
| Carrier frequency, кГц | 1…15 |
| Width, мм | 82 |
| Type of cooling | Вентилятор (встроенный) |
| Integrated braking resistance | Да |
| Depth, мм | 145 |
