Perforated rolling trays are part of the metal cable support systems of the IEK group of companies. Designed for laying and protection of power and low-voltage cables. When used in conjunction with a cover, it provides maximum cable protection against external influences, dust and moisture. Depending on the version, the trays can be used both inside public, industrial buildings, structures and retail facilities, as well as outdoors under a canopy, in the open air, as well as in rooms with high humidity.
Rolled perforated trays IEK are made of cold-rolled steel coils, galvanized by a conveyor method or by dipping finished products in a zinc melt.
The IEK rolling tray system consists of straight elements and accessories designed to change the direction of the route, as well as covers and connecting elements of various sizes.
For safety requirements, the product complies with IEC 61537.

Measuring instruments of Professional and Expert series are designed primarily for professional use, they are packed in boxes suitable for transportation and subsequent storage.

All series of the multimeters and clamp meters are equipped with original 9VCrone type battery.
The battery is located outside of the device, so during the storage it can not discharge.
Exception: Compact Series. 12V voltage , 23A battery type.

IEK multimeters and current clamps are 100% calibrated, that guarantees high level of accuracy.

Current clamps of Expert Series are supplied in convenient protective bag.

The scope of supply of the multimeters of Master and Professional series includes a rubber cover bag to protect the unit from damage if dropped.
Retractable leg of the cover bag allows convenient positioning of the multimeter during measurement.

Particular attention is paid to the User Security.
All series of the multimeters are equipped with professional-quality measuring probes.
Safety Category: CAT II 600V.
Wire connections have an advanced reliability that increases the life of the test probes by several times in comparison with accessories of cheap multimeters.

For the multimeters of Universal, Master and the Compact series which are very popular along retail customers, an attractive package format is developed.
Blister can be conveniently placed on commercial equipment with suspensions.

Multi meter

Indication

Measuring range selection

Max. voltage measuring range, AC

Lowest resolution, AC voltage

Max. voltage measuring range, DC

Max. measuring measurement range

Supply voltage

Measuring circuit category

Measured value memory

Multiple display

True RMS measurement

Width

Height

Voltage type

Ambient temperature

Diode verification range

Test range of transistors hFE

Lowest resolution, DC current

Capacitance measurement range of condenser

Peak value memory

Interface

Inductance measurement

Overload protector

Maximum value storage

Continuity test

Degree of protection (IP)

Duty cycle measurements

Lowest resolution, DC voltage

Length

Minimum value storage

Enclosure insulation

Lowest resolution, resistance

Analogue bargraph display

Conductivity measurement

Data hold

Max. current measuring range, DC

Polarity indicator

Thermocouple complete

Relative value measurement

Max display reading

Measurement method

Max. current measuring range, AC

Weight

Lowest resolution, AC current

Frequency measurement

Resistance test/diode test

With decibel measurement (dB)

Overload indicator

Capacitance measurement

Resistance measurement range

Temperature measurement

Мультиметры цифровые MAS830L, MAS838L MASTER. Руководство по эксплуатации

Мультиметры цифровые MAS830L, MAS838L MASTER. Краткое руководство по эксплуатации

Паспорта и РЭ

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

Digital multimeter Master MAS830L IEK

Temperature measurement range

Max. capacitance measuring range

Lowest resolution, capacitance

Milliohm measurement with 4 wire technique (Kelvin connection)

Lowest resolution, temperature

Max. voltage measuring circuit category

Power and energy measurement

Explosion-tested version

Harmonics analysis/power quality

Automatic circuit breaker

Rotational speed measuring

Cable symmetry testing for two wire connections a-b-E

IR interface

Cable length measurement

Max. temperature measuring range

ARMA2L 5 Мультиметр цифровой SMART DM4S. Краткое руководство по эксплуатации

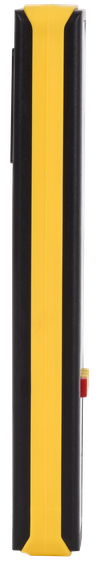

ARMA2L 5 Digital multimeter SMART DM4S IEK

Indication	Цифровой (-ая)
Measuring range selection	Автоматический
Max. voltage measuring range, AC, В	600
Lowest resolution, AC voltage	1 мВ
Max. voltage measuring range, DC, В	600
Max. measuring measurement range, МОм	10
Supply voltage, В	1,5
Temperature measurement range, °C	-20...1000
Max. capacitance measuring range	6000.00
Measuring circuit category	Категория III
Measured value memory	Нет
Multiple display	Нет
True RMS measurement	Да
Width, мм	78
Height, мм	156.0
Voltage type	Перемен./постоян. (AC/DC)
Ambient temperature, °C	0...40
Lowest resolution, capacitance	Прочее
Data hold	Нет
Milliohm measurement with 4 wire technique (Kelvin connection)	Нет
Lowest resolution, temperature	1 °C
Lowest resolution, resistance	1 Ом
With decibel measurement (dB)	Нет
Max. voltage measuring circuit category, В	600
Inductance measurement	Нет
Polarity indicator	Да
Lowest resolution, DC current	100
Weight, кг	0.16
Enclosure insulation	Двойная, класс II
Duty cycle measurements	Нет
Temperature measurement	Да
Relative value measurement	Нет
Power and energy measurement	Нет
Explosion-tested version	Нет
Lowest resolution, AC current	100
Harmonics analysis/power quality	Нет
Automatic circuit breaker	Нет
Minimum value storage	Нет
Rotational speed measuring	Нет
Lowest resolution, DC voltage	1 мВ
Max. current measuring range, AC, А	0,6
Cable symmetry testing for two wire connections a-b-E	Нет
Capacitance measurement	Нет
Thermocouple complete	Да
Frequency measurement	Нет
Conductivity measurement	Нет
Analogue bargraph display	Нет
Max. current measuring range, DC, А	0,6
Resistance test/diode test	Да
IR interface	Нет
Continuity test	Да
Interface	Нет
Maximum value storage	Нет
Peak value memory	Нет
Cable length measurement	Нет
Max. temperature measuring range, °C	1000
