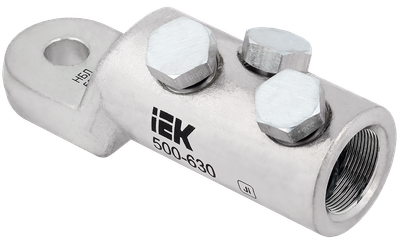

Shear head tinned lug NBL 500-630-16/3 35kV IEK
Product ID:
Main specifications
| Nominal cross section, мм² | 500...630 |
| Bolt dimension metric (M..) | 24 |
| Width | 51.5 |
| Length | 140.0 |
| Number of screws | 3 |
Description
Modular electrical installation products 45x45 of the PRIMER series are designed for organizing a workplace using cable ducts, floor hatches or socket blocks, as well as for open installation in KMKU-type boxes.
The front panel is designed for installation of Keystone Jack RJ-45 or RJ-11 modules. Socket for 1 input. Dimensions, HxWxD, mm: 45x22.5. Color - silver.
Compatible with modules: ITK Module Keystone Jack 110 IDC 90 degrees
Dimensions of modular EUI PRIMER: 1 module = 45x22.5 mm 2 modules (1 post) = 45x45 mm
Advantages
- High tensile strength, crushing and single impacts, increased resistance to transverse loads and bends.
- Bends when laying, takes a rectilinear shape when removing the load.
- Durable armor with minimal weight and diameter, allows you to use the cable in the ground and cable sewers
- The shell does not spread fire during group laying, does not contain halogens, is resistant to ultraviolet.
Design Features
Specifications
| Nominal cross section, мм² | 500...630 |
| Bolt dimension metric (M..) | 24 |
| Width | 51.5 |
| Length | 140.0 |
| Number of screws | 3 |
| Surface protection | Лужёное |
| Material | Дюралюминиевый сплав |
| Cross section form | Однопроволочная/многопроволочная жила |
| Moment of screw head failure during installation of line cabs, Нм | 56 |
| Colour insulation | Прочее |
| Weight, кг | 0,65 |
| Number of screws | 3 |
| Operating voltage, В | 1000 |
| Insulation | Нет |
| Ambient temperature, °C | -60...+50 |
| Max. conductor cross section, мм² | 630 |
