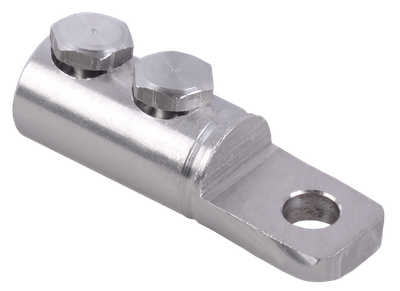

Lugs with bolt NP 150-240 35kW IEK
Product ID:
Main specifications
Nominal cross section, mm² | 150...240 |
Bolt dimension metric (M..) | 20х1,5 |
Width | 35.0 |
Length | 111.0 |
Number of screws | 2 |
Description
The bolted terminals and sleeves, like compression terminals and sleeves, are designed for termination of conductors. However they can be fixed without use of expensive equipment. A torque wrench is sufficient. Moreover, their unquestionable advantage is a capability to be used for termination and connection of both copper and aluminum conductors. All products have conductivity according to GOST 17441-84.
Life time:
30 years
Warranty:
6 years
Advantages
- Applicable for copper and aluminum cores.
- No special tool is required for installation.
Design Features
Each bolt tip is multi-sized and is designed for a range of cable cross-sections.
The design of bolts has several bores, such as shear necks, whereby the head shear occurs flush with or below the surface of the tip.
Specifications
Nominal cross section, mm² | 150...240 |
Bolt dimension metric (M..) | 20х1,5 |
Width | 35.0 |
Length | 111.0 |
Number of screws | 2 |
Surface protection | Bare |
Material | Duralumin alloy |
Cross section form | Round stranded/sector stranded |
Operating voltage, B | 35000 |
Moment of screw head failure during installation of line cabs, Nm | 60 |
Ambient temperature, °C | -60...+80 |
Max. conductor cross section, mm² | 240 |
Colour insulation | Other |
Insulation | No |
Logistics parameters
Group | Transport | |
---|---|---|
Quantity | 4 | 100 |
Units | pc; 1 | pc; 1 |
Type of packaging | RECTANGULAR PACKAGE | CORPORATED |
Packaging material | HIGH DENSITY POLYETHYLENE (HDPE) | FIVE-LAYER CORPORATED |
Barcode | 4606056364323 | 4606056364330 |
Gross weight, kg | 0.768 | 19.2 |
Netto weight, kg | 0.74496 | 18.624 |
Volume, m^3 | 0.0005 | 0.019236 |
Length, cm | 10 | 36.5 |
Height, cm | 5 | 17 |
Width, cm | 10 | 31 |
Method of applying information | Mold | Mold |
