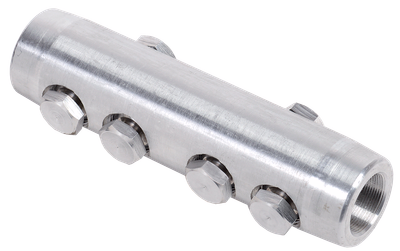

Connector with bolt GS-800 35 kW IEK

Main specifications
Nominal cross section, мм² | 800 |
Bolt dimension metric (M..) | 22 |
Number of screws | 10 |
Surface protection | Без покрытия (голый) |
Ambient temperature, °C | -60...+80 |
Description
ITK ELECTRA LT - Line-interactive UPS to reliably protect your equipment from power problems. The intelligent processor management guarantees effective control and optimization of the UPS operation. The LCD display provides a convenient display of UPS status information such as battery level, input and output voltage, and other parameters. The mute function allows the user to turn off the beeps of the UPS to create a comfortable working environment. The UPS generates a pure sine wave output to provide stable and reliable power to connected devices, including sensitive electronic devices. Generator compatibility allows the UPS to work safely with a generator set, providing continuous power during utility outages. The UPS is equipped with 3 SCHUKO sockets, a USB socket and an extended charger.
Advantages
- A wide range of overall performances for all cabinets LINEA N and LINEA E.
- The package includes a lock with three-point locking, rods and hinges.
- Available in two colors: grey (RAL7035) and black (RAL9005).
- They are delivered in high-quality reliable packaging.

Design Features
Specifications
Nominal cross section, мм² | 800 |
Bolt dimension metric (M..) | 22 |
Number of screws | 10 |
Surface protection | Без покрытия (голый) |
Ambient temperature, °C | -60...+80 |
Width, мм | 59.0 |
Height, мм | 59.0 |
Oil stop/centre bar | Нет |
Insulation | Нет |
Length, мм | 190.0 |
Nominal voltage, кВ | 35 |
Voltage row | Свыше 30 кВ |
Weight, кг | 0,894 |
With shear-off head | Да |
Moment of screw head failure during installation, Нм | 62,2 |
Material | Дюралюминиевый сплав |
