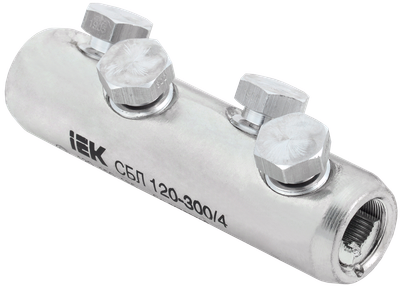

Shear head tinned connector SBL 120-300/4 35kV IEK
Product ID:
Main specifications
| Nominal cross section, мм² | 120...300 |
| Bolt dimension metric (M..) | 22 |
| Number of screws | 4 |
| Surface protection | Лужёное |
| Ambient temperature, °C | -60...+50 |
Description
High-performance ONI operator panels are an ideal solution for building visualization and control systems for local installations and technological processes. They have high reliability and even higher information processing speed, a large amount of built-in, dynamically distributed RAM and permanent memory, all the necessary interfaces and communication protocols, wide functionality and modern design. All ONI operator panels are designed to withstand harsh industrial environments, and software for creating custom applications is provided free of charge. This is modern and high-quality equipment, which once you choose, you will no longer look for a more optimal balance of quality, reliability and cost.
Advantages
- Enclosure material: flameproof ABS plastic or carbonelite.
- Rated operating current and connecting capacity:
- - TV blocks - 15-100 A, Ø 1.5 - 10 mm2;
- - TS blocks - 60-600 A, Ø 16 - 300 mm2;
- - TC blocks - 10-100 A, Ø 1,5 - 25 mm2.
- A wide range of operating temperatures: from -40 to +50°C.
- Test for excessive temperature (not more than 45°C).
- Test for short-term withstand current of 120 A per 1 mm2 for 1 second.
- Voltage drop test (not more than 3.2 mV).
Design Features
Specifications
| Nominal cross section, мм² | 120...300 |
| Bolt dimension metric (M..) | 22 |
| Number of screws | 4 |
| Surface protection | Лужёное |
| Ambient temperature, °C | -60...+50 |
| Material | Дюралюминиевый сплав |
| With shear-off head | Да |
| Nominal voltage, кВ | 1 |
| Insulation | Нет |
| Moment of screw head failure during installation, Нм | 40 |
| Length, мм | 140.0 |
| Width, мм | 38.0 |
| Weight, кг | 0,43 |
