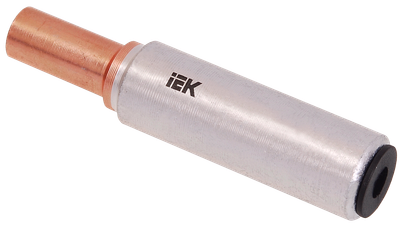

Copper-aluminium coupling sleeves GMA-35/50 IEK
Product ID:
Main specifications
| Internal diameter 1, мм | 9.4 |
| Internal diameter 2, мм | 8.2 |
| Material | Алюминий / Медь |
| Application | Прочее |
| Cross section form | Многопроволочная круглая/секторная жила |
Description
Mini contactors of MKI series are intended for use in control circuits of various loads supplied by AC voltage up to 660 V, 50 Hz. The mini contactors allow for remote switching of power circuits of application categories AC3 (control of motors up to 5 kW) and AC1 (control of heaters). The mini contactors enclosures ensure degree of protection IP20 according to GOST 14254. The climatic version and application category of the contactors is UHL4 according to GOST 15150.
Design Features
Specifications
| Internal diameter 1, мм | 9.4 |
| Internal diameter 2, мм | 8.2 |
| Material | Алюминий / Медь |
| Application | Прочее |
| Cross section form | Многопроволочная круглая/секторная жила |
| Debth of Left Side Cable Diversion, мм | 43.0 |
| Voltage row | До 1 кВ |
| Outer diameter, мм | 20.0 |
| Minimum Axial Breaking Load, кН | 2.00 |
| Reduced Al nominal cross section, мм² | - |
| Operating temperature range, °C | -60...+50 |
| For pull protected connections | Нет |
| Suitable for Aldrey-cables | Нет |
| Length, мм | 75.0 |
| Debth of the right side cable, мм | 20.0 |
