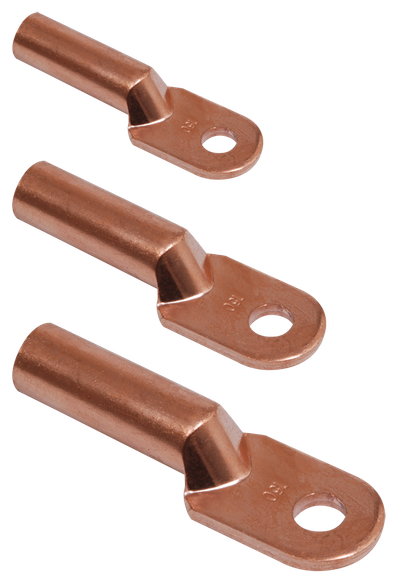

Copper lugs DT-16 IEK
Product ID:
Main specifications
Nominal cross section, mm² | 16.0 |
Bolt dimension metric (M..) | 8 |
Surface protection | Bare |
Material | Copper |
Connecting angle | Straight |
Description
Designed for termination of copper wires and cable conductors using a compression method.
Life time:
5 years
Warranty:
3 years
Advantages
- Reliability of the contact connection by pressing the lug with a special tool.
Design Features
Reliability of the connection is ensured by structural feature of the article.
Specifications
Nominal cross section, mm² | 16.0 |
Bolt dimension metric (M..) | 8 |
Surface protection | Bare |
Material | Copper |
Connecting angle | Straight |
Flange shape | Ring shape |
Slender flange model | No |
Insulated | No |
With sight-hole | No |
Type of conductor | Multi-wire |
Sleeve length, mm | 30.0 |
Diameter mounting hole, mm | 8.5 |
Diameter of core hole, mm | 5.5 |
Nominal voltage, B | 10000 |
Ambient temperature, °C | -40...80 |
Documents
Passports
Logistics parameters
Group | Transport | |
---|---|---|
Quantity | 200 | 1200 |
Units | pc; 1 | pc; 1 |
Type of packaging | RECTANGULAR PACKAGE | CORPORATED |
Packaging material | HIGH DENSITY POLYETHYLENE (HDPE) | FIVE-LAYER CORPORATED |
Barcode | 4606056121261 | 4606056121278 |
Gross weight, kg | 4.5 | 27 |
Netto weight, kg | 4.365 | 26.19 |
Volume, m^3 | 0.0032 | 0.0192 |
Length, cm | 17.5 | 12 |
Height, cm | 10 | 37 |
Width, cm | 13.5 | 43.5 |
Method of applying information | Mold | Mold |
