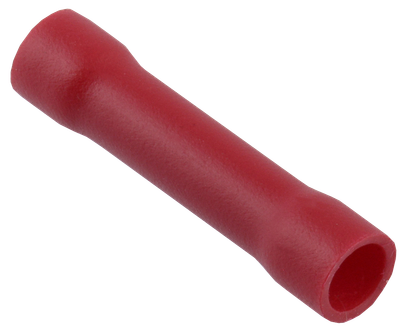

Bushing GSI 0,5-1,5 (100 pcs.) IEK
Product ID:
Main specifications
| Model | Стандартный тип |
| Colour insulation | Красный |
| Insulation | ПВХ (PVC) |
| Surface protection | Лужёное |
| Material | Медь |
Description
Neutral bus bars with SCHNI-type insulator are intended for electric and mechanical connection of neutral operating and protective conductors. Constructively, SCHNI buses are made of a latten alloy bus placed onto a plastic insulator made of self-extinguishing plastic. Standard exploitation conditions: - ambient temperature: from –40 to +50 C; - relative humidity: under 90%.
Design Features
Specifications
| Model | Стандартный тип |
| Colour insulation | Красный |
| Insulation | ПВХ (PVC) |
| Surface protection | Лужёное |
| Material | Медь |
| Type of connection | Опрессовочный сжимной соединитель |
| For pull protected connections | Нет |
| Suitable for solid cores | Нет |
| Sleeve form | Длинная |
| Voltage row | До 400 В |
| Extrusion Force, Н | 30 |
| Ambient temperature, °C | -40...80 |
| Useful for stranded conductors | Да |
| Max current in long-term mode at Umax Imax, А | 19 |
| Section of connected conductor, мм² | 0,5 |
| Ambient class | УХЛ3.1 |
| Mounting temperature, °C | -20...50 |
| Length, мм | 24.2 |
| Suitable for fine strand conductors | Нет |
| Nominal cross section, мм² | 0,5...1,5 |
