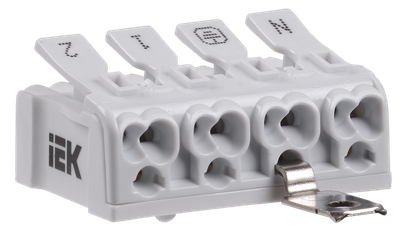

Connecting spring-controlled terminal KSPnz4-2L+N+PE IEK
Product ID:
Main specifications
| Number of poles | 4 |
| Mounting method | Прочее |
| Connectable conductor cross section multi-wired, мм² | 0,5...2,5 |
| Colour | Серый |
| Nominal rated voltage, В | 450 |
Analogs
Description
Optical crosses are designed for switching the optical signals either from trunk lines or for distributing these signals over small server and office optical networks. They can be wall mounted or 19” version.
Design Features
Specifications
| Number of poles | 4 |
| Mounting method | Прочее |
| Connectable conductor cross section multi-wired, мм² | 0,5...2,5 |
| Colour | Серый |
| Nominal rated voltage, В | 450 |
| Type of electrical connection 2 | Соединение с пружинным зажимом |
| Product/component type | Клемма КСП |
| Number of clamp positions per pole | 1 |
| Connection position | Сбоку (поперечное) |
| Rated current In, А | 16 |
| Connectable conductor cross section solid-core, мм² | 0,5...2,5 |
| Length, мм | 38,5 |
| Material insulation body | Термопласт |
| Operation temperature, °C | -60...40 |
| Nominal frequency, Гц | 50 |
| Width/grid dimension, мм | 5.0 |
| Type of electrical connection 1 | Соединение с пружинным зажимом |
