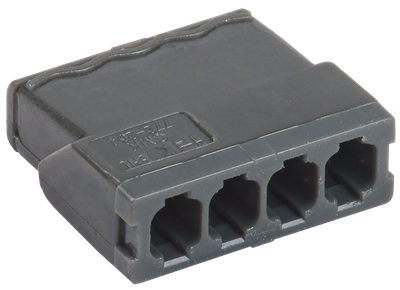

Construction and installation terminal SMK 772-244 compact with paste (4pcs/pack) IEK

Product ID:

Main specifications

Number of clamp positions	4
Connection position	Сбоку (поперечное)
Nominal cross section, мм²	2,5
Connectable conductor cross section fine-strand without cable end sleeve, мм²	-
Connectable conductor cross section solid-core, мм²	0,5...2,5

Compact LED luminaire for accent lighting of architectural and landscape elements, as well as interior decor

High-quality oxygen-free copper conductor used in patch cord provides high connection speed and stable data transmission to create a reliable household or working local area network.
The outer shell is made of environmentally friendly PVC corresponding to the European production standard.

Number of clamp positions	4
Connection position	Сбоку (поперечное)
Nominal cross section, мм²	2,5
Connectable conductor cross section fine-strand without cable end sleeve, мм²	-
Connectable conductor cross section solid-core, мм²	0,5...2,5
Colour	Красный
Nominal current, А	24
Nominal voltage, В	450
Type of electrical connection	Фиксатор/защелка
Nominal DC operating voltage Ue, В	220
Suitable for flexible core	Да
Degree of protection (IP)	IP20
Maintainability	Нет
Type of electrical connection 2	Фиксатор/защелка
Nominal Attachment Capacity, мм²	2,5
Mechanical Execution Group	М3
Width, мм	16.5
Operation temperature, °C	-25...60
Length, мм	18.3
Suitable for solid core	Да
Rated insulation voltage Ui, В	660
Relative air humidity	≤ 90%
Ambient class	УХЛ3
Connectable conductor cross section multi-wired, мм²	-
Nominal operating AC voltage Ue, В	450
Transparent	Нет
Height, мм	6.5
With operation lever	Нет
Conductor cross section flexible (fine-strand) with cable end sleeve, мм²	-
Suitable for multi-wire core	Да
