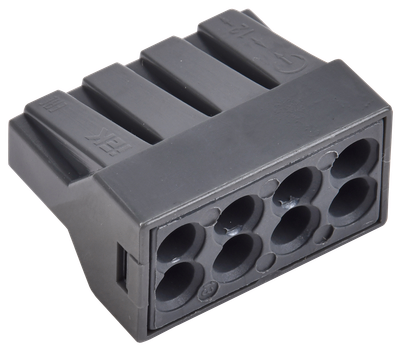

Terminal block SMK773-308 (4 pcs./set) IEK
Product ID:
Main specifications
| Number of clamp positions | 8 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 1,5...2,5 |
| Connectable conductor cross section solid-core, мм² | 0,75...2,5 |
Description
Modular circuit breakers (MCB) VA47-60 are intended for automatic power source cut-off under excess currents. Recommended for use in group panels (apartment and floor) and distribution boards of residential, domestic, public and administrative buildings.
Design Features
Specifications
| Number of clamp positions | 8 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 1,5...2,5 |
| Connectable conductor cross section solid-core, мм² | 0,75...2,5 |
| Colour | Серый |
| Nominal current, А | 24 |
| Nominal voltage, В | 400 |
| Type of electrical connection | Фиксатор/защелка |
| Nominal operating AC voltage Ue, В | 400 |
| Operation temperature, °C | -25...60 |
| Nominal DC operating voltage Ue, В | 220 |
| Nominal Attachment Capacity, мм² | 0,75...2,5 |
| Type of electrical connection 2 | Фиксатор/защелка |
| Maintainability | Нет |
| Mechanical Execution Group | М3 |
| Connectable conductor cross section multi-wired, мм² | 1,5...2,5 |
| Conductor cross section flexible (fine-strand) with cable end sleeve, мм² | - |
| Height, мм | 13.6 |
| Relative air humidity | ≤ 90% |
| Length, мм | 24.2 |
| Suitable for flexible core | Да |
| With operation lever | Нет |
| Rated insulation voltage Ui, В | 660 |
| Width, мм | 19.5 |
| Degree of protection (IP) | IP20 |
| Ambient class | УХЛ3 |
| Suitable for solid core | Да |
| Transparent | Нет |
| Suitable for multi-wire core | Да |
