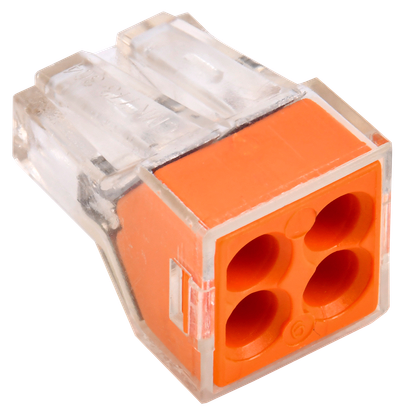

Terminal block SMK773-324 (4 pcs./set) IEK
Product ID:
Main specifications
| Number of clamp positions | 4 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 1,5...2,5 |
| Connectable conductor cross section solid-core, мм² | 0,75...2,5 |
Description
Optical crosses are designed for switching the optical signals either from trunk lines or for distributing these signals over small server and office optical networks. They can be wall mounted or 19” version.
Design Features
Specifications
| Number of clamp positions | 4 |
| Connection position | Сбоку (поперечное) |
| Nominal cross section, мм² | 2,5 |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 1,5...2,5 |
| Connectable conductor cross section solid-core, мм² | 0,75...2,5 |
| Colour | Оранжевый |
| Nominal current, А | 24 |
| Nominal voltage, В | 400 |
| Type of electrical connection | Фиксатор/защелка |
| Ambient class | УХЛ3 |
| Suitable for solid core | Да |
| Width, мм | 19.5 |
| Connectable conductor cross section multi-wired, мм² | 1,5...2,5 |
| Maintainability | Нет |
| Type of electrical connection 2 | Фиксатор/защелка |
| Degree of protection (IP) | IP20 |
| Nominal Attachment Capacity, мм² | 0,75...2,5 |
| Nominal operating AC voltage Ue, В | 400 |
| Suitable for flexible core | Да |
| With operation lever | Нет |
| Mechanical Execution Group | М3 |
| Suitable for multi-wire core | Да |
| Transparent | Нет |
| Relative air humidity | ≤ 90% |
| Length, мм | 13.3 |
| Conductor cross section flexible (fine-strand) with cable end sleeve, мм² | - |
| Operation temperature, °C | -25...60 |
| Nominal DC operating voltage Ue, В | 220 |
| Rated insulation voltage Ui, В | 660 |
| Height, мм | 13.6 |
