Соединитель - 1 шт.
Уплотнительная прокладка - 1 шт.

The bolted terminals and sleeves, like compression terminals and sleeves, are designed for termination of conductors. However they can be fixed without use of expensive equipment. A torque wrench is sufficient. Moreover, their unquestionable advantage is a capability to be used for termination and connection of both copper and aluminum conductors. All products have conductivity according to GOST 17441-84.

Fixed connectors have two cable inlets - bottom and top. In both inlets are provided with plastic membranes to provide a degree of protection IP, they can be cut off before installing the gland into the inlet.

The design of portable connectors provides a collet closing mechanism made of elastic material. The design of the collet closing mechanism, due to the presence of teeth on the collets, ensures secure fixing of the cable in the casing when tightening the nut, and the desired IP degree of protection.

On the socket lid a convenient upper arm and lower hook are provided to open the lid. With the upper arm you can easily open the lid on a portable socket to connect it with one hand. Lower hook is useful for opening the lid of fixed or built-in socket.

In stationary connectors the lateral holes for screws, intended for the assembly of two halves of the casing are located inside the casing, and they are not visible from the outside. After the assembly the screws heads shall be recessed in a niche that excludes their damage.

The 63A and 125A sockets have a "pilot" contact that turns on after the other pins of the plug are connected, and is the one that opens first when disconnected. The pilot contact is located in the center of the contact circle of a 4 or 5-pin connector.

To tighten the collet closing mechanism a nut with slots for unscrewing and screwing is used. A bead on hexagon surface is made to abut against it and prevents the dropping off the wrench. For easy screwing a nut with a hand, special retainer tangs are provided on the outer surface.

All connectors of MAGNUM series are provided with columnar-type clamps with two clamping screws. The screws are placed in the same direction for ease of installation. The clamp firmly secures the conductor, provides high contact pressure, low contact resistance, less heat. Ends of the screws are ground, that eliminates the cutting of live wires.

Panel-mounted CEE socket outlet

IEC-amperage

Voltage acc. EN 60309-2

Number of poles

Degree of protection (IP)

Operating voltage range

Flange size vertical

Max. conductor cross section

Ambient temperature

Number of contacts

Fixing device

Angle of plug

Presence of lock

Connection system

Identification colour

Clock hour position

Material

Nominal electric insulation strength

Nominal frequency

Military model

Flange size horizontal

Соединители штепсельные силовые промышленного назначения ССИ серии MAGNUM. Краткое руководство по эксплуатации

Паспорта и РЭ

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

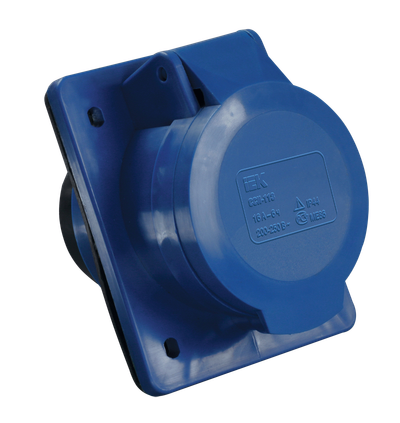

Flush socket SSI-423 32A-6h/200-250V 2P+PE IP44 MAGNUM IEK

Modular circuit breakers (MCB) VA47-29M are designed to protect distribution and group circuits having different loads.
Modular circuit breakers VA47-29M are recommended for use in electrical distribution panels of residential and public buildings as well as in industries.

Parts made of elastomeric materials such as O-rings, gaskets are resistant to aging.

Cable inlet is provided with a gland preventing damage to the cable. The gland is suitable for cables of different diameters.

Pin contacts are made of electrical brass, and socket units are made of phosphorous bronze. To prevent corrosion, all the elements are nickel-plated.

The pressure caused by the contact slots of the contact plugs prevents an easy insertion and and extraction of the plug. The plug does not fall out from the socket during normal operation.

The screws used for mechanical and electrical connections are protected from corrosion and loosening.

Plastic pin on the power connector casing allows fixing the lid of the mating part of the connection and prevents possible unauthorized disconnection during mechanical impact on the connected cable due to its tension.

IEC-amperage, А	32
Voltage acc. EN 60309-2	230 В 50-60 ГЦ , синий
Number of poles	3
Degree of protection (IP)	IP44
Ambient temperature, °C	-25...40
Flange size vertical, мм	96.5
Angle of plug	Наклон./скошен./углов.
Nominal frequency, Гц	50/60
Presence of lock	IEK_V0000070
Fixing device	EV008943
Clock hour position, ч	6
Material	Пластик
Max. conductor cross section, мм²	6,0
Flange size horizontal, мм	79.5
Identification colour	Синий/голубой
Connection system	Клемма винтовая
Number of contacts	IEK_V0000071
Military model	Нет
Nominal electric insulation strength, В	500
Operating voltage range, В	200...250

Socket 423 flush 2P+E 32A 220V IP44 IEK
