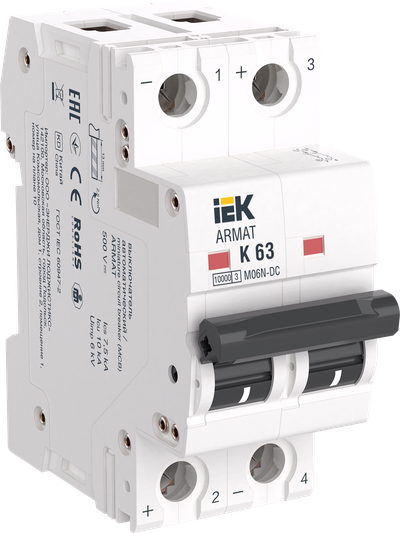

ARMAT Circuit breaker M06N-DC 2P K 63A IEK
Product ID:
Main specifications
| Number of poles | 2 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | K |
| Voltage type | Постоянный (DC) |
| Nominal rated voltage, В | 440 |
Design Features
Specifications
| Number of poles | 2 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | K |
| Voltage type | Постоянный (DC) |
| Nominal rated voltage, В | 440 |
| Nominal voltage DC, В | 440 |
| Switch off technique | Термомагнитный |
| Power loss, Вт | 26.0 |
| Frequency, Гц | - |
| Degree of protection (IP) | IP20 |
| Delayed | Нет |
| Electric shock protection class | 0 |
| Width in number of modular spacings | 2 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V, кА | 10.0 |
| Number of poles (total) | 2 |
| Additional equipment possible | Да |
| Type of electric connection | Винтовое соединение |
| Connectable conductor cross section solid-core, мм² | 1...25 |
| Possibility of busbars connection | PIN (штырь), FORK (вилка) |
| Rated short-circuit breaking capacity IEC 60947-2, кА | 6 |
| Number of protected poles | 2 |
| Electric wear resistance, циклов | 6000 |
| Rated insulation voltage Ui, В | 500 |
| Pollution degree | 2 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, кА | 10.0 |
| Mechanical wear resistance, циклов | 20000 |
| Mounting method | на DIN-рейку |
| Rated short-circuit breaking capacity EN 60898, кА | 10 |
| Weight of one pole, кг | 0,118 |
| Power poles quantity | 2 |
| Range of use | Промышленное и бытовое |
| Connectable conductor cross section multi-wired, мм² | 1...25 |
| Max. cross section incoming cable, мм² | 25 |
| Ambient temperature during operating, °C | -40...70 |
| Frequency, Гц | - |
