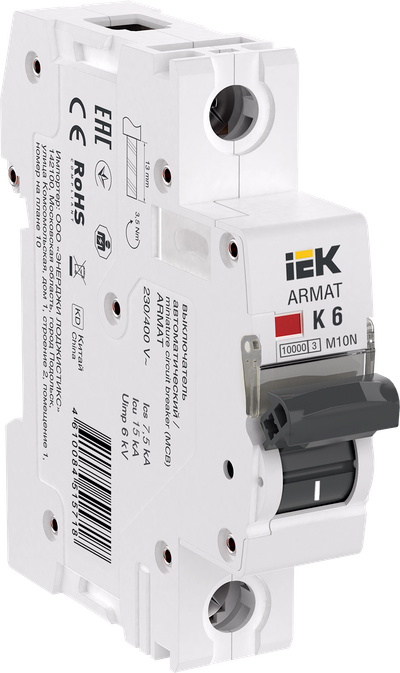

ARMAT Circuit breaker M10N 1P K 6A IEK
New
Product ID:
Main specifications
| Nominal rated current, А | 6.0 |
| Number of poles | 1 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | K |
| Rated switching capacity, кА | 7.5 |
Design Features
Specifications
| Nominal rated current, А | 6.0 |
| Number of poles | 1 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | K |
| Rated switching capacity, кА | 7.5 |
| Voltage type | Переменный (AC) |
| Nominal rated voltage, В | 400 |
| Switch off technique | Тепловой, электромагнитный |
| Power loss, Вт | 3.0 |
| Range of use | IEK_V0000012 |
| Mechanical wear resistance, циклов | 20000 |
| Ambient temperature during operating, °C | -5...40 |
| Number of protected poles | 1 |
| Additional equipment possible | Да |
| Weight of one pole, кг | 0,118 |
| Electromagnetic release | Да |
| Max. cross section incoming cable, мм² | 25 |
| Operation mode | Продолжительный-S1 |
| Electronic release | Нет |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V, кА | 7.5 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, кА | 7.5 |
| Electric shock protection class | 0 |
| Thermal release | Да |
| Suitable for switch disconnector | Да |
| Connectable conductor cross section solid-core, мм² | 1...25 |
| Rated short-circuit breaking capacity IEC 60947-2, кА | 10 |
| Number of poles (total) | 1 |
| Maintainability | Нет |
| Type of electric connection | Винтовое соединение |
| Mounting method | EV004369 |
| Electric wear resistance, циклов | 10000 |
| Connectable conductor cross section multi-wired, мм² | 1...25 |
| Frequency, Гц | 50 |
| Rated short-circuit breaking capacity EN 60898, кА | 7,5 |
| Residual release | Нет |
| Voltage type for actuating | EV000460 |
| Concurrently switching N-neutral | Нет |
| Degree of protection (IP) | IP20 |
| Rated insulation voltage Ui, В | 500 |
| Suitable for motor safety switch | Да |
| Explosion protection | IEK_V0000020 |
| Mounting rail type | ТН-35 |
| Width in number of modular spacings | 1 |
| Possibility of busbars connection | PIN (штырь), FORK (вилка) |
| Primary current, А | 6 |
| Frequency, Гц | 50 |
