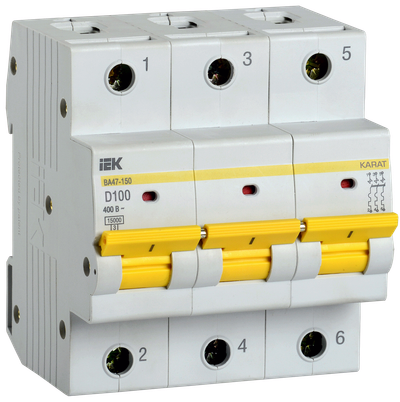

Miniature circuit breaker VA47-150 3P 100A 15kA D IEK
Product ID:
Main specifications
| Nominal rated current, А | 100.0 |
| Number of poles | 3 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | D |
| Voltage type | Переменный (AC) |
Description
Accessories for electrical installation pipes are designed for installation of data, power and low-voltage electrical lines of surface-mounted and hidden types in office and residential rooms, industrial and administrative buildings during construction and renovation.
Design Features
Specifications
| Nominal rated current, А | 100.0 |
| Number of poles | 3 |
| Rated surge voltage invariability, кВ | 6 |
| Release characteristic | D |
| Voltage type | Переменный (AC) |
| Nominal rated voltage, В | 400 |
| Switch off technique | Тепловой, электромагнитный |
| Power loss, Вт | 45.0 |
| Electric wear resistance, циклов | ≥ 4000 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, кА | 15.0 |
| Weight of one pole, кг | 0,194 |
| Possibility of busbars connection | PIN (штырь), FORK (вилка) |
| Number of poles (total) | 3 |
| Width in number of modular spacings | 4,5 |
| Range of use | IEK_V0000013 |
| Max. cross section incoming cable, мм² | 50 |
| Degree of protection (IP) | IP40 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V, кА | 15.0 |
| Thermal release | Да |
| Residual release | Нет |
| Operation mode | Продолжительный-S1 |
| Mechanical wear resistance, циклов | ≥ 6000 |
| Electromagnetic release | Да |
| Mounting rail type | ТН-35 |
| Mounting method | EV004369 |
| Ambient class | УХЛ4 |
| Number of protected poles | 3 |
| Rated short-circuit breaking capacity EN 60898, кА | 15 |
| Electronic release | Нет |
| Type of electric connection | Винтовое соединение |
| Frequency, Гц | 50 |
| Maintainability | Нет |
| Additional equipment possible | Да |
| Primary current, А | 100 |
| Frequency, Гц | 50 |
