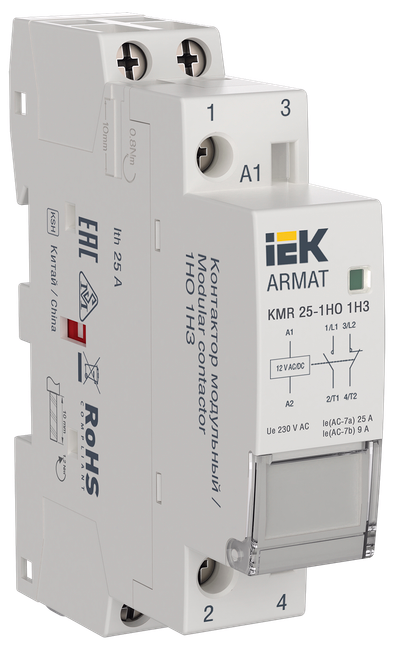

ARMAT Modular contactor KMR 25A 12V AC/DC 1NO 1NC IEK
Product ID:
Main specifications
| Rated operation current, А | 25 |
| Rated operating voltage, В | 230 |
| Voltage type (operating voltage) | Переменный (AC) |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
Design Features
Specifications
| Rated operation current, А | 25 |
| Rated operating voltage, В | 230 |
| Voltage type (operating voltage) | Переменный (AC) |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Rated excitation voltage, В | 12 |
| Voltage type (excitation voltage) | Перемен./постоян. (AC/DC) |
| Connection type main current circuit | Винтовое соединение |
| Rated operation current Ie at AC-1, 400 V, А | 25 |
| Utility category | АС-1, АС-3, АС-7а, АС-7b |
| Modular version | Да |
| Max. load fluorescent lamp, ВА | - |
| Degree of protection (IP) | IP20 |
| Rated surge voltage invariability, кВ | 4 |
| Slider for hand switch | Нет |
| Built-in depth, мм | 68 |
| Width in number of modular spacings | 1 |
| Conditioned rated short-circuit current Iq, кА | 3 |
| Max. incandescent lamp load, Вт | - |
