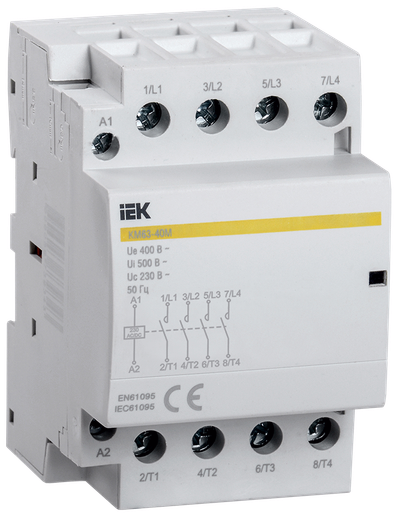

Modular contactors KM KM63-40M AC/DC IEK
Product ID:
Main specifications
| Rated operation current, А | 63 |
| Rated operating voltage, В | 400 |
| Voltage type (operating voltage) | Переменный (AC) |
| Number of contacts as normally open contact | 4 |
| Number of contacts as normally closed contact | 0 |
Advantages
- Ease of use.
- Possibility to install independently in production by the customer.
Specifications
| Rated operation current, А | 63 |
| Rated operating voltage, В | 400 |
| Voltage type (operating voltage) | Переменный (AC) |
| Number of contacts as normally open contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Rated excitation voltage, В | 230 |
| Voltage type (excitation voltage) | Перемен./постоян. (AC/DC) |
| Rated surge voltage invariability, кВ | 4 |
| Modular version | Да |
| Number of modular spacings | 3 |
| Conditioned rated short-circuit current Iq, кА | 3 |
| Utility category | АС-1, АС-7а |
| Max. incandescent lamp load, Вт | - |
| Degree of protection (IP) | IP20 |
| Max. load fluorescent lamp, ВА | - |
| Width in number of modular spacings | 3 |
| Additional equipment possible | Нет |
