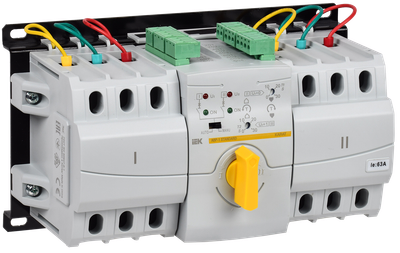

Modular automatic transfer switch AVR-1 STANDARD 63A KARAT IEK

Modular automatic transfer switch AVR-1 STANDARD 63A KARAT IEK
Product ID:

Main specifications

Nominal current, А63
Number of poles3
Switching Control MethodРучное и автоматическое
Breaking capacity (IEC947, Icu, 400 V), кА6.0
Operating voltage range, В175...265

Advantages

  • Fixing the front panel without screws.
  • Ready-made solution, no need to purchase a frame.
  • Unlimited number of posts horizontally.
  • Patented technology.
Modular automatic transfer switch AVR-1 STANDARD 63A KARAT IEK

Specifications

Nominal current, А63
Number of poles3
Switching Control MethodРучное и автоматическое
Breaking capacity (IEC947, Icu, 400 V), кА6.0
Operating voltage range, В175...265
Lower threshold of ABP actuation voltage, В180
Upper threshold of ABP actuation voltage, В260
Switching modesАвт. перекл. с авт.возвратом, без авт. возврата, режим запуска генератора
Overload protector, А63
Number of handle operating positions3
Availability of fire protectionДа
Depth, мм121
Maximum number of conductors per clamp≤ 2
Nominal voltage AC 50 Hz, В400
Connection capability, мм²1...25
Modular versionНет
Generator control relay nominal current, А3
Type of built-in circuit breakersВА47-60М
Width, мм248
Height, мм125
Availability of relay for generator controlДа
Mechanical design group in accordance with GOST 17516.1М2
Type of conductors to attachПровода и кабели с проведением специальной подготовки и шины
Classification by ability to respond to short-circuit currents in accordance with GOST IEC 60947-6-1СВ
Power consumption, Вт≤ 5
Moment of an inhaling of screws of contact clips, Нм2
With ground fault protection functionНет
Response characteristics from overcurrent typeС
Operating temperature range, °C-5...40
