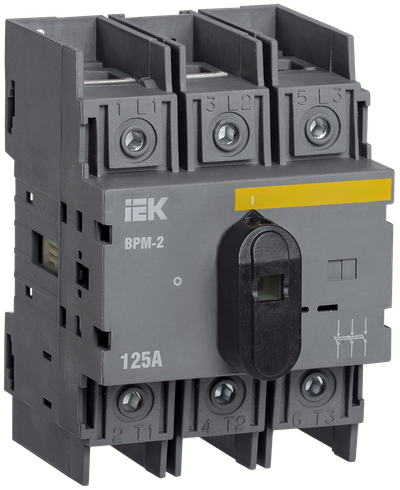

Modular switch-disconnector VRM-2 3P 125A IEK

Product ID:

Main specifications

Switching function	Выключатель-разъединитель нагрузки
Nominal rated current, А	125
Number of contacts as change-over contact	0
Number of poles	3
Nominal rated voltage, В	690...400

The housing and bracket are made of aluminum alloy with a special anodized or polymer coating.
The durable rotating bracket allows you to choose the direction of the light flow and adjust the parameters of the lighting scheme to specific requirements.
The degree of protection from external influences – IP66 allows the use of lamps in rooms with high humidity.

Switching function	Выключатель-разъединитель нагрузки
Nominal rated current, А	125
Number of contacts as change-over contact	0
Number of poles	3
Nominal rated voltage, В	690...400
Voltage type	Перемен./постоян. (AC/DC)
Number of contacts as normally open contact	0
Nominal DC operating voltage, В	440/230
Number of contacts as normally closed contact	0
Rated surge voltage invariability, кВ	8
Forced segregation (according to DIN VDE 0113)	Нет
Depth, мм	87
Nominal short-term maintained current during 1s Icw , А	2500
Utility category	АС-22
Lamptype	Не применимо
Colour calotte	Черный
Height, мм	100
Number of change-over contacts	0
Width in number of modular spacings	3,8
Rated switching capacity, кА	-
Degree of protection (IP)	IP20
Mechanical wear resistance, циклов	10000
Width, мм	69
Max. conductor cross section, мм²	70
Electric wear resistance, циклов	7500
Connection capacity of contact clamps, мм²	10...70
Operating temperature range, °C	-25...40
With signal lamp	Нет
Mains frequency, Гц	50
