Free release mechanism with instantaneous switching - reduces the negative impact of the electric arc when turned on due to the stability of the contact closure speed

Connect up to 4 additional AUX series devices - the design of the device allows you to connect up to 4 additional AUX series devices simultaneously

Additional insulating casing - the arc-extinguishing chamber is separated by a protective casing, in order to increase the insulating properties; it contains a channel necessary for the removal of gases at the moment of switching off short-circuit currents

Arc-extinguishing cocoon - to effectively interrupt short-circuit currents, the switching contacts are placed in a ferromagnetic arc-extinguishing cocoon with linings made of insulating material

Soldering of contact parts on the movable and fixed contacts increases the arc-resistant properties of the contact system at the moment of switching off overcurrents

Contact group position indicator - facilitates visual diagnosis of the on/off position of the contact group

Two arc extinguishing chambers with 24 plates in total increase the voltage drop across the electric arc at the moment of switching off short circuit currents and accelerate arc extinguishing

Increased strength of the case - 8 aluminum rivets connect the parts of the case, for strength and reliability of the structure, even at the moment of switching off the maximum short circuit currents

Arc removal copper-plated ferromagnetic bracket - forms the trajectory of the arc into the de-ionic grid, which accelerates arc extinction and reduces the thermal effect of the arc on the switching contacts

Nominal terminal tightening torque 5 Nm - the circuit breaker design provides a nominal screw terminal tightening torque of 5 Nm. This reduces the contact resistance at the pin and increases the energy efficiency of the device.

Increased connection capacity of leads - up to 50 mm2

Miniature circuit breaker (MCB)

Nominal rated current

Nominal rated voltage

Release characteristic

Rated short-circuit breaking capacity EN 60898

Number of poles

Voltage type

Range of use

Rated insulation voltage Ui

Electromagnetic release

Pollution degree

Weight of one pole

Additional equipment possible

Electronic release

Nominal rated current, А	80.0
Nominal rated voltage, В	400
Release characteristic	Прочее
Rated short-circuit breaking capacity EN 60898, кА	10
Number of poles	4

Nominal rated current, А	80.0
Nominal rated voltage, В	400
Release characteristic	Прочее
Rated short-circuit breaking capacity EN 60898, кА	10
Number of poles	4
Voltage type	Переменный (AC)
Range of use	Промышленное и бытовое
Rated insulation voltage Ui, В	690
Electromagnetic release	Да
Pollution degree	2
Weight of one pole, кг	0,2
Additional equipment possible	Да
Electronic release	Нет
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, кА	10.0
Connectable conductor cross section solid-core, мм²	1...50
Max. cross section incoming cable, мм²	50
Residual release	Нет
Number of protected poles	4
Type of electric connection	Винтовое соединение
Ambient temperature during operating, °C	-40...70
Electric shock protection class	0
Connectable conductor cross section multi-wired, мм²	1...35
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, кА	10.0
Rated surge voltage invariability, кВ	6
Degree of protection (IP)	IP20
Maintainability	Нет
Switch off technique	Тепловой, электромагнитный
Operation mode	Продолжительный-S1
Electric wear resistance, циклов	5000
Rated impulse withstand voltage Uimp, кВ	6
Possibility of busbars connection	PIN (штырь)
Thermal release	Да
Number of poles (total)	4
Frequency, Гц	50
Width in number of modular spacings	4
Mechanical wear resistance, циклов	20000
Mounting method	на DIN-рейку

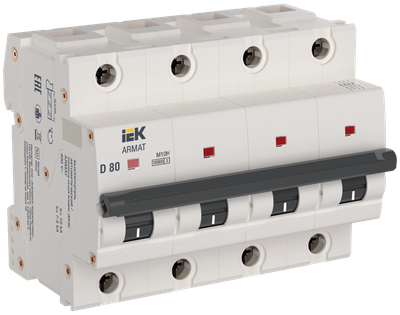

ARMAT Circuit breaker M10H 4P L 80A IEK
