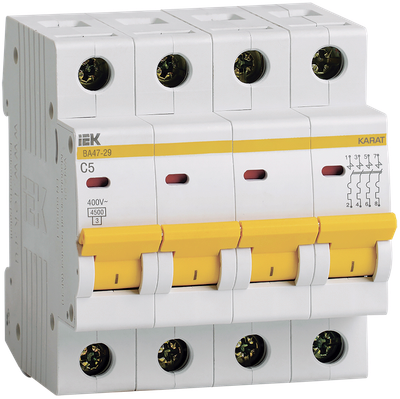

Miniature circuit breaker VA47-29 4P 5A 4,5kA C IEK
Артикул:
Основные характеристики
| Nominal rated current, А | 5.0 |
| Nominal rated voltage, В | 400 |
| Release characteristic | C |
| Rated short-circuit breaking capacity EN 60898, кА | 4,5 |
| Number of poles | 4 |
Описание
Wiring products of "BOLERO" series are the embodiment of functionality and elegant design. Elegant silhouettes of products and high quality materials make the BOLERO series the perfect choice for classic and modern interiors of apartments, country houses, office and commercial facilities.
Особенности конструкции
Технические характеристики
| Nominal rated current, А | 5.0 |
| Nominal rated voltage, В | 400 |
| Release characteristic | C |
| Rated short-circuit breaking capacity EN 60898, кА | 4,5 |
| Number of poles | 4 |
| Voltage type | Перемен./постоян. (AC/DC) |
| Range of use | Промышленное и бытовое |
| Built-in depth, мм | 73,6 |
| Electromagnetic release | Да |
| Thermal release | Да |
| Mounting method | на DIN-рейку |
| Mounting rail type | 35x7.5 |
| Current limiting class | 3 |
| Rated surge voltage invariability, кВ | 4 |
| Electronic release | Нет |
| Ambient class | УХЛ4 |
| Release actuating time in short-circuit tm zone, с | 0,1 |
| Power poles quantity | 4 |
| Explosion protection | Без взрывозащиты |
| Switch off technique | Тепловой, электромагнитный |
| Frequency, Гц | 50 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V, кА | 4.5 |
| Suitable for motor safety switch | Да |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 4 |
| Residual release | Нет |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, кА | 4.5 |
| Nominal voltage DC, В | ≤ 48 |
| Type of electric connection | Винтовое соединение |
| Power loss, Вт | 12.0 |
| Additional equipment possible | Да |
| Max. cross section incoming cable, мм² | 25 |
| Number of poles (total) | 4 |
