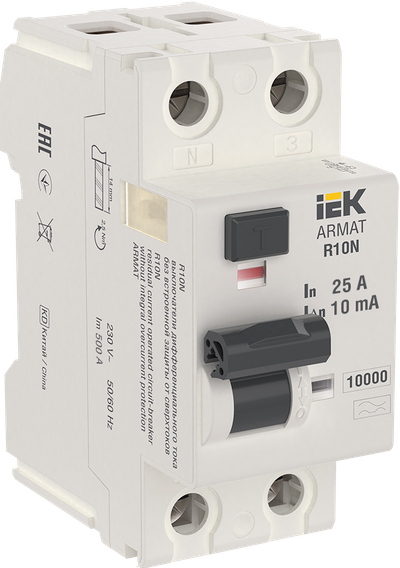

ARMAT RCCB R10N 2P 25A 10mA type A IEK
Product ID:
Main specifications
| Primary current, А | 25 |
| Number of poles | 2 |
| Short-circuit conventional residual current, кА | 10 |
| Rated fault current, А | 0.01 |
| Leakage current type | A |
Design Features
Specifications
| Primary current, А | 25 |
| Number of poles | 2 |
| Short-circuit conventional residual current, кА | 10 |
| Rated fault current, А | 0.01 |
| Leakage current type | A |
| Selective protection | Нет |
| Nominal voltage, В | 230 |
| Width in number of modular spacings | 2 |
| Degree of protection (IP) | IP20 |
| Nominal rated voltage, В | 230 |
| Delay adjustable | Нет |
| Construction size (in accordance with DIN 43880) | 2 |
| Mounting method | На DIN-рейку |
| Built-in depth, мм | 76 |
| Max. cross section incoming cable, мм² | 25 |
| Frequency | 50 Гц |
| Electric wear resistance, циклов | 6000 |
| Tightening moment, нм | 5 |
| Nominal rated current, А | 25 |
| With interlocking device | Нет |
| Weight, кг | 0.2 |
| Surge current capacity, кА | - |
| Rated surge voltage invariability, кВ | 4 |
| Operation mode | Продолжительный-S1 |
| Nominal not off residual current, мА | 5.0 |
| Rated insulation voltage Ui, В | 500 |
| Rated fault current adjustable | Нет |
| Short-time delayed tripping | Нет |
| Additional equipment possible | Нет |
| Mechanical wear resistance, циклов | 10000 |
| Short-circuit breaking capacity (Icw), кА | 10 |
| Connectable conductor cross section multi-wired, мм² | 1,5...16 |
| Connectable conductor cross section solid-core, мм² | 1,5...25 |
| Ambient temperature during operating, °C | -25...45 |
