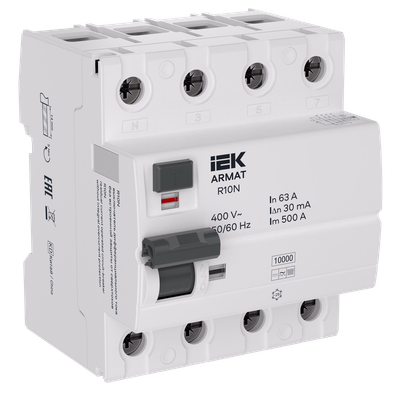

ARMAT Residual current switch R10N 4P 63A 30mA type B IEK
New
Product ID:
Main specifications
| Primary current, А | 63 |
| Number of poles | 4 |
| Rated fault current, А | 0.03 |
| Leakage current type | B |
| Selective protection | Нет |
Design Features
Specifications
| Primary current, А | 63 |
| Number of poles | 4 |
| Rated fault current, А | 0.03 |
| Leakage current type | B |
| Selective protection | Нет |
| Short-circuit breaking capacity (Icw), кА | 10 |
| Width in number of modular spacings | 4 |
| Nominal rated current, А | 63 |
| Nominal rated voltage, В | 400 |
| Surge current capacity, кА | - |
| Nominal operating voltage, В | 400 |
| Mounting method | На DIN-рейку |
