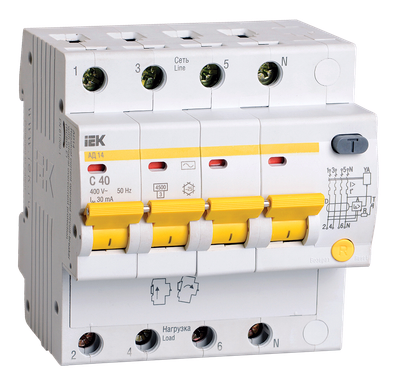

RCBO AD14 4P 40A 30mA IEK
Main specifications
| Nominal rated current, А | 40 |
| Number of poles | 4 |
| Rated fault current, А | 0,03 |
| Leakage current type | Переменный (AC) |
| Breaking capacity, кА | 4.5 |
Description
Patch cords are switching cords designed for switching the data transmission lines between different sections of switching panels, connecting the active switching or server equipment to the network, as well as for connecting the phones and computers to information sockets. The main characteristic of the cords is their resistance to multiple loads of bending and torsion, which is provided by a multi-wire conductor. The most common and popular types of connectors are RJ45-RJ45.
All ITK patch cords are marked with cable category, number of pairs, type and diameter of conductors, cord length. For ease of installation, reduction of errors in the termination and switching the lines in switchgears, as well as separation of cable lines, depending on the application, the range of ITK patch cords provides different color options.
Design Features
Specifications
| Nominal rated current, А | 40 |
| Number of poles | 4 |
| Rated fault current, А | 0,03 |
| Leakage current type | Переменный (AC) |
| Breaking capacity, кА | 4.5 |
| Release characteristic | C |
| Nominal rated voltage, В | 230/400 |
| Voltage type | Переменный (AC) |
| Switch off technique | IEK_V0000011 |
| Electromagnetic release | Да |
| Width in number of modular spacings | 4,9 |
| Max. cross section incoming cable, мм² | 35 |
| Mounting method | EV004369 |
| Rated short-circuit breaking capacity IEC 60947-2, кА | 4,5 |
| Built-in depth, мм | 72,1 |
| Degree of protection (IP) | IP20 |
| Thermal release | Да |
| Concurrently switching N-neutral | Да |
| Residual release | Да |
| Electronic release | Нет |
| Number of poles (total) | 4 |
| Frequency | 50 Гц |
| Number of protected poles | 4 |
| Rated surge voltage invariability, кВ | 4 |
| Type of electric connection | EV000415 |
| Rated short-circuit breaking capacity EN 60898, кА | 4,5 |
