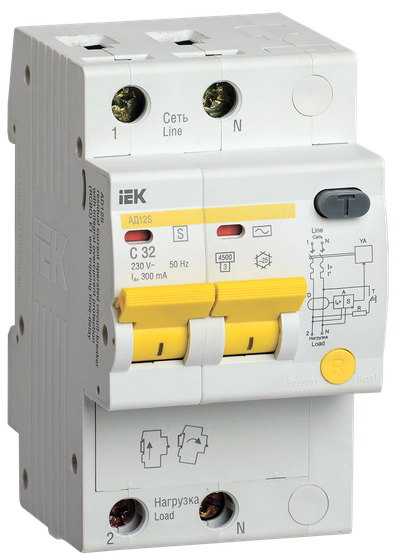

RCBO AD12S 2P 32A 300mA IEK
Product ID:
Main specifications
| Nominal rated current, А | 32 |
| Number of poles | 2 |
| Rated fault current, А | 0,3 |
| Leakage current type | Переменный (AC) |
| Breaking capacity, кА | 4.5 |
Description
Neutral bus bars with SCHNI-type insulator are intended for electric and mechanical connection of neutral operating and protective conductors. Constructively, SCHNI buses are made of a latten alloy bus placed onto a plastic insulator made of self-extinguishing plastic. Standard exploitation conditions: - ambient temperature: from –40 to +50 C; - relative humidity: under 90%.
Design Features
Specifications
| Nominal rated current, А | 32 |
| Number of poles | 2 |
| Rated fault current, А | 0,3 |
| Leakage current type | Переменный (AC) |
| Breaking capacity, кА | 4.5 |
| Release characteristic | C |
| Nominal rated voltage, В | 230 |
| Voltage type | Переменный (AC) |
| Number of poles (total) | 2 |
| Width in number of modular spacings | 3 |
| Rated short-circuit breaking capacity IEC 60947-2, кА | 4,5 |
| Electromagnetic release | Да |
| Frequency | 50 Гц |
| Type of electric connection | Винтовое соединение |
| Degree of protection (IP) | IP20 |
| Mounting method | на DIN-рейку |
| Rated short-circuit breaking capacity EN 60898, кА | 4,5 |
| Thermal release | Да |
| Residual release | Нет |
| Rated surge voltage invariability, кВ | 4 |
| Max. cross section incoming cable, мм² | 35 |
| Concurrently switching N-neutral | Да |
| Electronic release | Нет |
| Switch off technique | Тепловой, электромагнитный |
| Number of protected poles | 2 |
