Cable connecting couplers of internal and external installations of the mark Stt(tp)-10 are designed to connect 3-wire power cables with paper insulation with armor and without armor for voltage up to 10 kV AC frequency 50Hz. According to its characteristics, the couplers meet the requirements of GOST 13781.0.

The couplers are designed for mounting on cables, type AAG-10, AAShV-10, AAVl-10, AAPl-10, ASG-10, ASVlShV-10, SG-10, SShV-10, SVShV-10, SV-10, SVG-10, their analogues and modifications.

The presence of the indicator of contacts position.

Indicator of actuation due to residual current: "Return" button. For AD12/14 - “AS” characteristic, for AD12M - “A” characteristic.

The possibility of simultaneous connection of FORK bus and flexible conductor for the distribution of circuit power supply through the upper terminal clamps, as well as the possibility of connection via PIN bus.

New design of AD12 / 12M / 14 allows you to attach additional devices KS47, KSV47 without the use of screws.

Improved arc blowout system: patent No. RU 139886.

Soldering of the silver-containing composite increases the wear resistance of the contact group and reduces the contact resistance.

LED indication of the voltage on the "Load" terminals and the built-in protection against long-term (265V; 0.5s) mains overvoltage (AD12M).

Convenient assembly / disassembly without the use of tools.

Compact, energy-efficient design: due to the use of a differential block of smaller size it saves space in the switchboards.

Increased strength in the area of conductors connection due to two additional rivets and monolithic faceplate.

Earth leakage circuit breaker

Nominal rated current

Number of poles

Rated fault current

Leakage current type

Breaking capacity

Release characteristic

Nominal rated voltage

Voltage type

Switch off technique

Frequency

Max. cross section incoming cable

Rated surge voltage invariability

Width in number of modular spacings

Built-in depth

Type of electric connection

Number of poles (total)

Residual release

Mounting method

Degree of protection (IP)

Concurrently switching N-neutral

Rated short-circuit breaking capacity EN 60898

Rated short-circuit breaking capacity IEC 60947-2

Number of protected poles

Electromagnetic release

Electronic release

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

RCBO AD12M 2P C16 30mA IEK

For interconnecting trays and accessories as well as attachment to bearing surfaces.

Arc chute made of 13 steel plates in order to effectively quench the arc.

Notches on the contact clamps reduce heat loss and increase the mechanical stability of the connection.

Anti-interference scheme excluding the faulty actuation: № RU Patent No. 124453.

Combined circuit with electronic module of differential protection, class D variator and integrated switch of VA47-60 series provides 4 types of protection: against differential current (leakage current), short-circuit, overload and protection of internal parts of the device against overvoltage.

A wide range of operating temperatures from -25 °C to + 50 °C allows the use of the switch in different climatic zones.

The status indicator of the main circuit provides accurate information on the status of contacts regardless of handle position.

Additional protection against burning of machine casing due to the arc and the heat removal due to fire resistant plate.

Quick mounting and more reliable mounting on a DIN-rail by means of latches in dual fixed position.

Nominal rated current, А	16
Number of poles	2
Rated fault current, А	0,03
Leakage current type	A
Breaking capacity, кА	6.0

Nominal rated current, А	16
Number of poles	2
Rated fault current, А	0,03
Leakage current type	A
Breaking capacity, кА	6.0
Release characteristic	C
Nominal rated voltage, В	230
Voltage type	Переменный (AC)
Number of protected poles	1
Frequency	50 Гц
Thermal release	Да
Max. cross section incoming cable, мм²	25
Mounting method	на DIN-рейку
Electronic release	Нет
Rated surge voltage invariability, кВ	4
Rated short-circuit breaking capacity EN 60898, кА	6
Number of poles (total)	2
Degree of protection (IP)	IP20
Electromagnetic release	Да
Type of electric connection	Винтовое соединение
Concurrently switching N-neutral	Да
Rated short-circuit breaking capacity IEC 60947-2, кА	6
Residual release	Да
Built-in depth, мм	71
Switch off technique	Тепловой, электромагнитный
Width in number of modular spacings	2

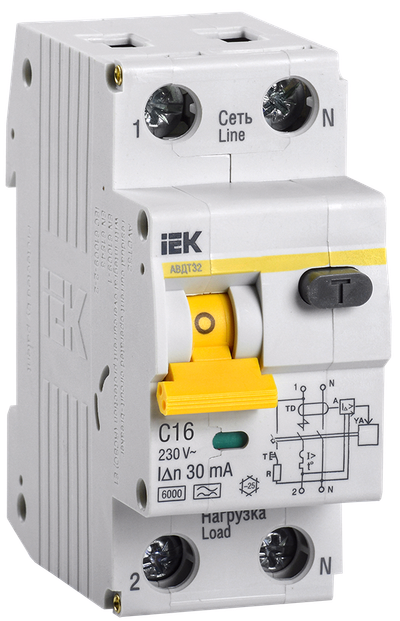

RCBO AVDT 32 C16 IEK
