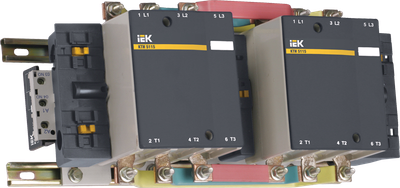

Contactor KTI-51153 reverse 115A 230V/AC3 IEK
Main specifications
| Rated operation current Ie at AC-3, 400 V, А | 115 |
| Rated operation power at AC-3, 400 V, кВт | 55 |
| Rated control supply voltage Us at AC 50HZ, В | 230 |
| Rated control supply voltage Us at DC, В | - |
| Rated operation current Ie at AC-1, 400 V, А | - |
Description
Power circuit breakers VA07-M are installed in the distribution devices of transformer substations, main and input switchboards as protection and control devices on the input and outgoing lines. Used to protect generators, transformers, buses, cables in industrial and civil construction.
VA07-M are used in electrical networks with rated operating voltage up to 690V and are designed for rated currents from 800 to 3200A. Maximum switching capacity - from 42 to 80 kA at a voltage of 400V.
Meet the requirements of GOST IEC 60947-1, 50030.2.
Basic equipment includes: - Combined electronic release with LSI protection and earth fault protection; - Electric drive; - Manual drive; - Coil inclusion; - Shunt release; - Minimum voltage release; - On cycle counter; - Horizontal leads.
Advantages
- Two types of overcurrent protection: thermal and electromagnetic.
- Independent contact position indicator.
- Can be snapped on to DIN-rail, with double locking.
- Wide operating temperature range from –40 to +50° С.
- Wide lever for convenient switching ON/OFF of the circuit breaker.
- Notches on the terminal clamps reduce the heat loss and increase mechanical strength of the connection.
Design Features
Specifications
| Rated operation current Ie at AC-3, 400 V, А | 115 |
| Rated operation power at AC-3, 400 V, кВт | 55 |
| Rated control supply voltage Us at AC 50HZ, В | 230 |
| Rated control supply voltage Us at DC, В | - |
| Rated operation current Ie at AC-1, 400 V, А | - |
| Rated voltage of isolation of Ui-Hz, В | 660 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of main contacts as normally open contact | 0 |
| Number of normally closed contacts as main contact | 0 |
| Modular version | Нет |
| Number of auxiliary contacts as normally closed contact | 0 |
| Degree of protection (IP) | IP00 |
| Voltage type for actuating | Переменный (AC) |
| Connection type main current circuit | Винтовое соединение |
