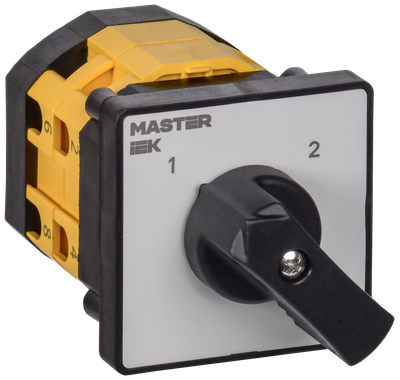

Cam switch standard handle 10A diagram 54 IEK
New
Product ID:
Main specifications
| Designation of provisions | EV001961 |
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Construction type | IEK_V0000165 |
| Type of control element | Короткая поворотная ручка (узкий хват) |
Specifications
| Designation of provisions | EV001961 |
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Construction type | IEK_V0000165 |
| Type of control element | Короткая поворотная ручка (узкий хват) |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Degree of protection (IP) | IP20 |
| With 0 (off) position | Нет |
| Front shield size | 48х48 мм |
| Connectable conductor cross section multi-wired, мм² | 1,5…4 |
| Nominal voltage, В | 690 |
| Suitable for ground mounting | Нет |
| With retraction in 0-position | Нет |
| Version as main switch | Да |
| Device construction | Встраиваемое устройство |
| Colour | EV000206 |
| Degree of protection (IP), front side | IP40 |
| Product/component type | Кулачковый переключатель |
| Switch function | Многоступенчатый переключатель |
| Nominal powet at AC-3 400V, кВт | 2 |
| Electric wear resistance, млн циклов | 0,0015 |
| Nominal operating current Ie at AC-21 AC-22 230 V, А | 10 |
| Degree of protection - IP in the shell | IP40 |
| With control unit | Нет |
| Nominal voltage DC, В | 24; 48; 110; 220 |
| Nominal operating current Ie at AC-3 230 V, А | 1,75 |
| Nominal power at AC-4 230 V, кВт | 0,37 |
| Nominal operating current Ie at AC-23 400 V, А | 6,5 |
| Nominal operating current Ie at AC-2 400 V, А | 5,5 |
| Nominal operating current Ie at AC-4 230 V, А | 2 |
| Ambient temperature, °C | -5…40 |
| Mechanical wear resistance, млн циклов | 0,3 |
| Connection type main current circuit | Винтовое соединение |
| Nominal operating current Ie at AC-4 400 V, А | 2 |
| Nominal power at AC-2 230 V, кВт | 2 |
| Number of switch positions | 2 |
| Lock the switch position | Да |
| Nominal power at AC-23 400 V, кВт | 5 |
| Nominal Attachment Capacity, мм² | 2,5 |
| Rated insulation voltage Ui, В | 690 |
| Degree of Protection - IP Side of Contacts | EV006404 |
| Nominal operating current Ie at AC-2 230 V, А | 5,5 |
| Suitable for intermediate mounting | Да |
| Rated surge voltage invariability, кВ | 4 |
| Nominal power at AC-2 400 V, кВт | 3 |
| Nominal power at AC-4 400 V, кВт | 0,55 |
| Modular version | Да |
| Nominal conditional short-circuit current Icn, А | 3 |
| Suitable for front mounting 4-hole | Да |
| Nominal operating current Ie at AC-23 230 V, А | 7,5 |
| Max. rated operation voltage Ue AC, В | 690 |
| Type of switch | Многоступенчатый переключатель |
| Nominal operating voltage DC contacts, В | 24; 48; 110; 220 |
| Complete device in housing | Нет |
| Nominal operating current Ie at AC-3 400 V, А | 1,75 |
| Nominal power at AC-23 230 V, кВт | 3 |
| Fuse current qG, А | 12 |
| Suitable for distribution board installation | Нет |
| Nominal operating current Ie at AC-21 AC-22 400 V, А | 10 |
| Nominal powet at AC-3 230V, кВт | 1 |
| Rated permanent current Iu, А | 10.0 |
| Nominal operating voltage AC contacts, В | 230; 400; 690 |
| Version as maintenance-/service switch | Да |
