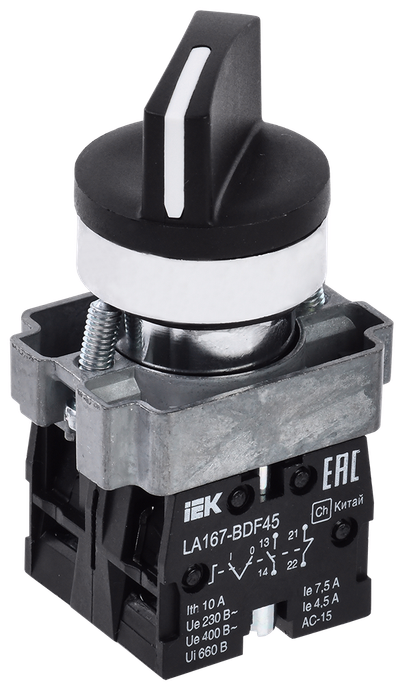

Switch LA167-BDF45 2 positions 1NO+1NC black IEK
Product ID:
Main specifications
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Type of control element | Короткая поворотная ручка (узкий хват) |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
Description
Screws are designed to create threaded connections using nuts and washers, as well as with pre-cut threads at the base of the part.
Advantages
- High degree of protection - the roof panel is equipped with a cast seal.
- When removing the lower panel-base with plugs, it is possible to obtain a cable entry with a size along the perimeter of the cabinet.
- Unified connection.
Design Features
Specifications
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Type of control element | Короткая поворотная ручка (узкий хват) |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| With 0 (off) position | Да |
| Rated permanent current Iu, А | 7.5 |
| Colour | EV000206 |
| Electric shock protection class | EV000583 |
| Switch function | Многоступенчатый переключатель |
| Mechanical wear resistance, млн циклов | 0,6 |
| Nominal Attachment Capacity, мм² | 2х2,5 |
| With retraction in 0-position | Да |
| Product/component type | Пакетный переключатель |
| Max. rated operation voltage Ue AC, В | 400 |
| Ambient temperature, °C | -10...40 |
| Degree of Protection - IP Side of Contacts | EV006404 |
| Lock the switch position | Нет |
| Electric wear resistance, млн циклов | 0,3 |
| Height, мм | 30.0 |
| Device construction | Встраиваемое устройство |
| Nominal operating voltage AC contacts, В | 110; 230; 400; 660 |
| Suitable for front mounting 4-hole | Да |
| Suitable for intermediate mounting | Да |
| Number of switch positions | 2 |
| Rated operation current Ie at AC-15, 230 V, А | 7,5 |
| Rated insulation voltage Ui, В | 660 |
| Width, мм | 40.0 |
| Nominal operating voltage DC contacts, В | 24; 48; 110; 220; 440 |
| Type of switch | Переключатель ВКЛ/ОТКЛ |
| Connection type main current circuit | Винтовое соединение |
| Suitable for distribution board installation | Да |
| Complete device in housing | Нет |
| Depth, мм | 70.0 |
| Nominal operating current Ie at AC-15 400V, А | 4,5 |
| Diameter openings, мм | 22.0 |
| Degree of protection (IP), front side | IP57 |
