Switch LAY5-BJ25 2 positions "I-0" long handle IEK
Артикул:
Основные характеристики
| Designation of provisions | 0-1 |
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Type of control element | Удлинённая поворотная ручка (широкий хват) |
| Number of auxiliary contacts as normally open contact | 0 |
Описание
IEK LED lamps are modern light sources, used in the luminaires as alternative to halogen lamps with GU5.3, GU10 bases and incandescent lamps with E14, E27 bases. The LED lamps are designed for use in outdoor and indoor luminaires for industrial, commercial and household facilities. They comply with requirements of IEC 62560.
Особенности конструкции
Технические характеристики
| Designation of provisions | 0-1 |
| Number of poles | 1 |
| Nominal heat current Th, А | 10 |
| Type of control element | Удлинённая поворотная ручка (широкий хват) |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With 0 (off) position | Да |
| Lock the switch position | Да |

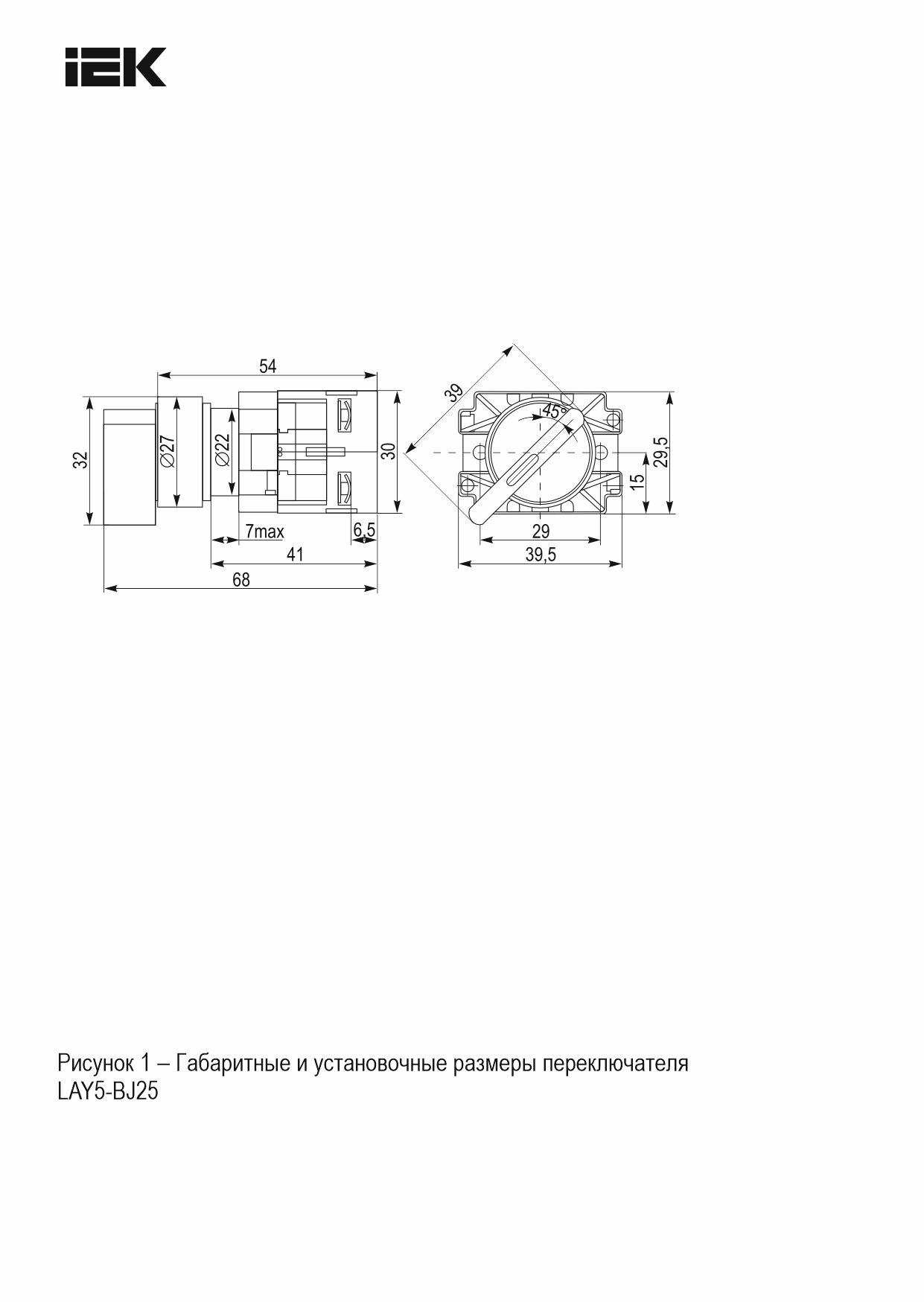

| Depth, мм | 68.0 |
| With retraction in 0-position | Нет |
| Complete device in housing | Нет |
| Rated insulation voltage Ui, В | 600 |
| Suitable for front mounting 4-hole | Нет |
| Device construction | Встраиваемое устройство |
| Rated permanent current Iu, А | 7.5 |
| Nominal operating current Ie at AC-15 400V, А | 1,5 |
| Suitable for distribution board installation | Да |
| Colour | Черный |
| Nominal operating voltage DC contacts, В | 24; 48; 110; 220; 400 |
| Suitable for intermediate mounting | Да |
| Type of switch | Многоступенчатый переключатель |
| Product/component type | Пакетный переключатель |
| Suitable for ground mounting | Нет |
| Ambient temperature, °C | -10...40 |
| Switch function | Многоступенчатый переключатель |
| Degree of Protection - IP Side of Contacts | IP20 |
| Rated operation current Ie at AC-15, 230 V, А | 3,0 |
| Electric shock protection class | II |
| Nominal Attachment Capacity, мм² | 2х2,5 |
| Nominal voltage DC, В | 400 |
| Handle Type - Device Supplement | Длинная ручка |
| Max. rated operation voltage Ue AC, В | 600 |
| Height, мм | 29.5 |
| Diameter openings, мм | 22.0 |
| Degree of protection (IP), front side | IP40 |
| Width, мм | 39.5 |
| Connection type main current circuit | Винтовое соединение |
| Nominal operating voltage AC contacts, В | 110; 230; 400; 600 |
| Number of switch positions | 2 |
