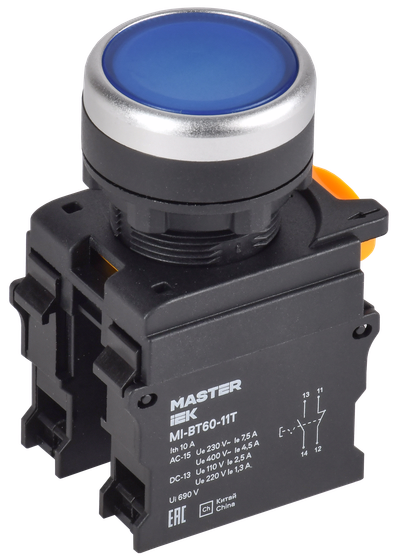

Latching button d=22mm 1NO+1NC blue MASTER IEK
New
Product ID:
Main specifications
| Hole diameter, мм | 22 |
| Spring-return | Нет |
| With signal lamp | Нет |
| Colour button | Синий/голубой |
| Type of button | Плоская (-ий) |
Specifications
| Hole diameter, мм | 22 |
| Spring-return | Нет |
| With signal lamp | Нет |
| Colour button | Синий/голубой |
| Type of button | Плоская (-ий) |
| Lamptype | Не применимо |
| Voltage type | Перемен./постоян. (AC/DC) |
| Switching function latching | Да |
| Degree of protection (IP) | IP54 |
| Number of command positions | 1 |
| Width opening, мм | - |
| Suitable for front mounting 4-hole | Да |
| Suitable for illumination | Нет |
| Number of contacts as change-over contact | 0 |
| Built-in depth, мм | 48 |
| Number of contacts as normally open contact | 1 |
| Height meter opening, мм | - |
| Nominal rated current, А | 0,6…10 |
| Number of contacts as normally closed contact | 1 |
| Nominal rated voltage, В | 48; 120; 230; 400; 600 |
| Number of change-over contacts | 0 |
| Construction type lens | Нет |
