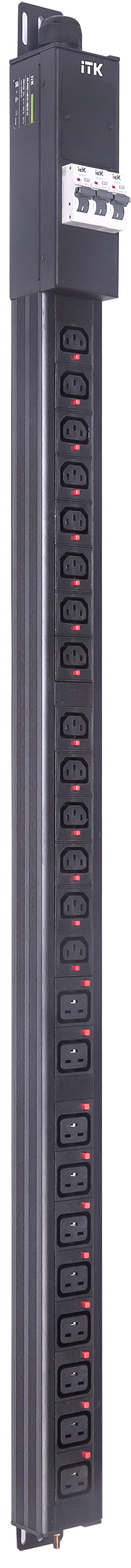

ITK BASE PDU vertical PV1113 29U 3 phase 32A 14 C13 sockets + 10 C19 sockets cable 3m IEC60309 plug (industrial)
Product ID:
Main specifications
| Mounting direction | Вертикальный (-ая) |
| Nominal rated current, А | 32 |
| Supply voltage, В | 400 |
| Max load power, Вт | 22000 |
| Number of C13 socket outlets | 14 |
Design Features
Specifications
| Mounting direction | Вертикальный (-ая) |
| Nominal rated current, А | 32 |
| Supply voltage, В | 400 |
| Max load power, Вт | 22000 |
| Number of C13 socket outlets | 14 |
| Number of output connections C19 | 10 |
| Number of socket outlets total | 24 |
| Number of height units | 29 |
| With LED indication | Нет |
| Protection | IEK_V0000064 |
| With fuse | Нет |
| Electrical connector type | силовой разъем 2-II по IEC 60309-2 (3Р+N+РЕ) |
| Cable length, м | 3.0 |
| Cross section wiring cores, мм² | 5х6 |
| Height, мм | 45.0 |
| Width, мм | 62.3 |
| Length, мм | 1260.0 |
| Ampere meter | Нет |
| SNMP | Нет |
| With temperature measurement | Нет |
| With display | Нет |
| Type of electric connection | С заземляющим (защитным) контактом |
| With mounting material | Нет |
| Material housing | EV000072 |
| Evaluation | Прочее |
| Number of C20 socket outlets | 0 |
| Rated voltage | EV010294 |
| Number of socket outlets with protective contact | 0 |
| Electrical connection | Соединительный кабель с вилкой |
| Operating temperature | 0...45 |
| Number of C19 socket outlets | 0 |
| Electric shock protection class | EV000582 |
| Frequency | EV008013 |
