Floor-standing 19" cabinets of the LINEA N series are designed to accommodate telecommunications and server equipment of various sizes, uninterruptible power supplies and batteries due to their reinforced design. The cabinets are made in a system of load-bearing structures of the 482.6 mm series in accordance with GOST 28601.2-90.

Cabinets of a collapsible design consist of a base, a double roof, vertical racks, profiles and doors. The cabinet design provides increased reliability and high load capacity. Access for equipment installation is possible from four sides through removable side walls, front and rear doors. The doors are easily removable with three-point locking and a rotary handle.

To ensure effective heat exchange and maintain the required temperature conditions, ITK fan panels of the PV series can be installed in the roof of the cabinet, up to 3 pieces per cabinet (depth 1000 mm). The roof, base and rear wall cabinets are perforated for installing ITK brush cable entries.

The cabinet is supplied with 19" G-shaped mounting profiles (4 pcs.), adjustable supports (legs) to compensate for uneven floors. It is possible to install swivel casters (not included in the package) simultaneously with the supports. The cabinet grounding kit allows you to connect all parts cabinets into a single grounding loop.The cabinets can be joined together using a connection kit.

ITK Network cabinet 19" LINEA N 42U 600x1000 mm with L-profiles perforated doors black

ITK LINEA N Комплект стенок боковых 1000мм для шкафа 42U серый

ITK LINEA N Комплект основание и крыша 600х1000мм для шкафа 28-47U серый

ITK LINEA N Панель задняя 600мм для шкафа 42U серая

ITK LINEA N Дверь перфорированная 600мм для шкафа 42U серая

ITK LINEA N Комплект стоек и профилей для шкафа 42U серый

It is used for assembly of the floor switchboards on intended for reception and distribution of the electric power in residential and public buildings, and also for protection of the departing lines at overloads and short circuits. Due to the use of the casing, the floor shield becomes a hinged design, not an embedded one.

ITK Network cabinet 19" LINEA N, 42U, 600x1000mm, perforated front door, grey

The luminaires are designed for indoor lighting in public and production premises with increased content of dust and moisture and for outdoor lighting.
Meet the requirements of EN 60598-1, EN 60598-2-1.

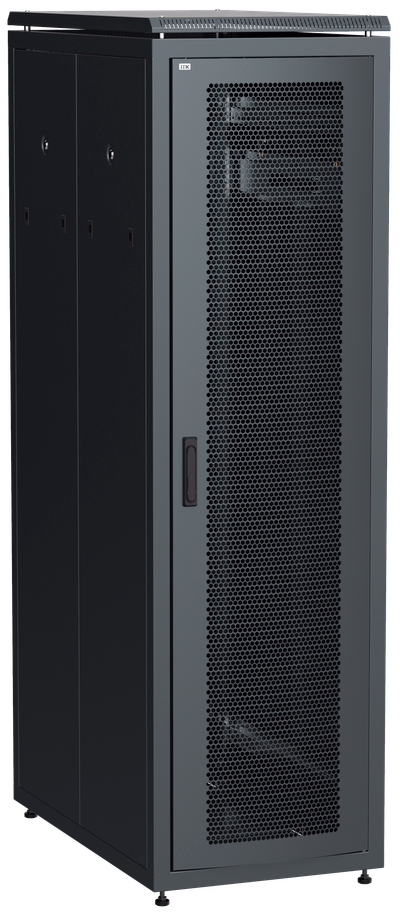

ITK Network cabinet 19" LINEA N, 42U, 600x1000mm, perforated front door, black

Height U	42
Depth, мм	1000
Width, мм	600
Maximum static load, кг	1000 (опоры), 300 (ролики)
Collapsible	Да
Colour	Черный
Useful depth, мм	915
Type of a front door	Перфорированная металлическая
Type of a back door	Глухая стенка
Number of doors	1
RAL-number	9005
Step of adjustment of guides, мм	20
Material	Сталь
Material of assembly profiles	Оцинкованная листовая сталь 1,5 мм
Mounting level	Передняя и задняя сторона
Modular spacing	Прочее
Ambient temperature, °C	-10...45
With sidewall	Да
Ambient class	УЗ
Model	Со неподвижной рамой
With front door	Да
Degree of protection (IP)	IP20
Mounting method	Напольный
Height, мм	2055
Demountable	Да
Surface protection	Порошковая окраска
Door opening angle, °	120
Number of height units	-

Артикул	Наименование	Кол-во
LN05-42U6X-DP	ITK LINEA N Дверь перфорированная 600мм для шкафа 42U черная	1
LN05-42UXX-X	ITK LINEA N Комплект стоек и профилей для шкафа 42U черный	1
LN05-42U6X-ZM	ITK LINEA N Панель задняя 600мм для шкафа 42U черная	1
LN05-XXX61-Y	ITK LINEA N Комплект основание и крыша 600х1000мм для шкафа 28-47U черный	1
LN05-42UX1-X	ITK LINEA N Комплект стенок боковых 1000мм для шкафа 42U черный	1
